SKU: RA104-206-NPP-INA

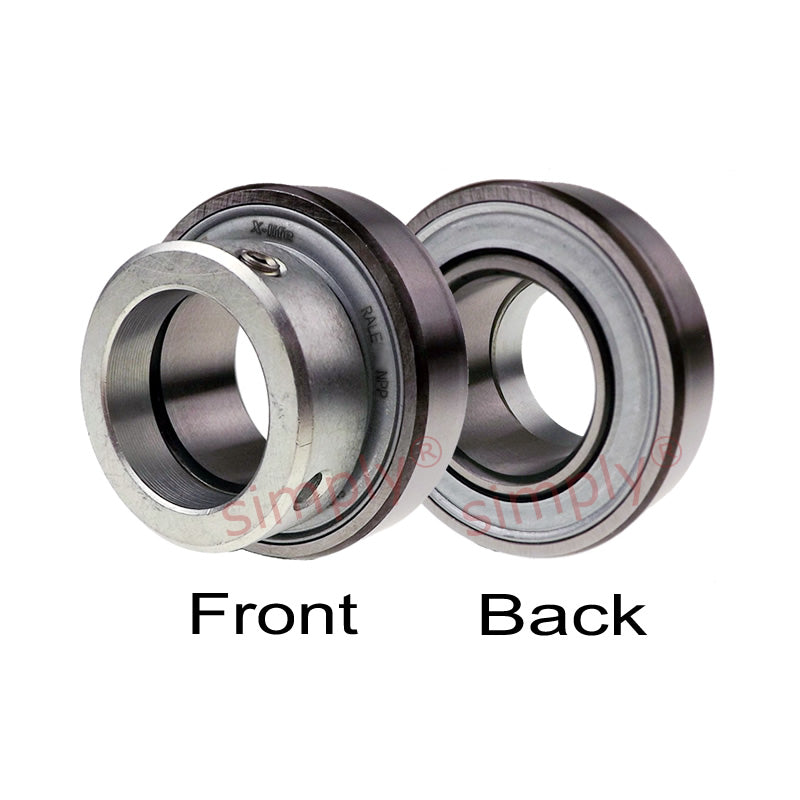

INA RA104206NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 31.75x62x35.8mm
INA RA104206NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 31.75x62x35.8mm
Regular price
£27.96
ex VAT£33.55inc. VAT
Regular price
Sale price
£27.96
ex VAT£33.55
inc. VAT
In stock
Price Break
10+
£24.88
19+
£23.49
29+
£23.21
39+
£22.93
49+
£22.65
74+
£22.37
99+
£20.97
199+
£20.69
249+
£20.41
499+
£20.13
999+
£19.57
Couldn't load pickup availability
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
- Type:
- Parallel Outer
Technical
Technical
| d | 31.75mm |
|---|---|
| d | 1-1/4 inch |
| D | 62mm |
| B1 | 35.8mm |
| B | 23.8mm |
| C | 18mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 5/32 inch |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.31 kg |
