SKU: QRM-04-MB

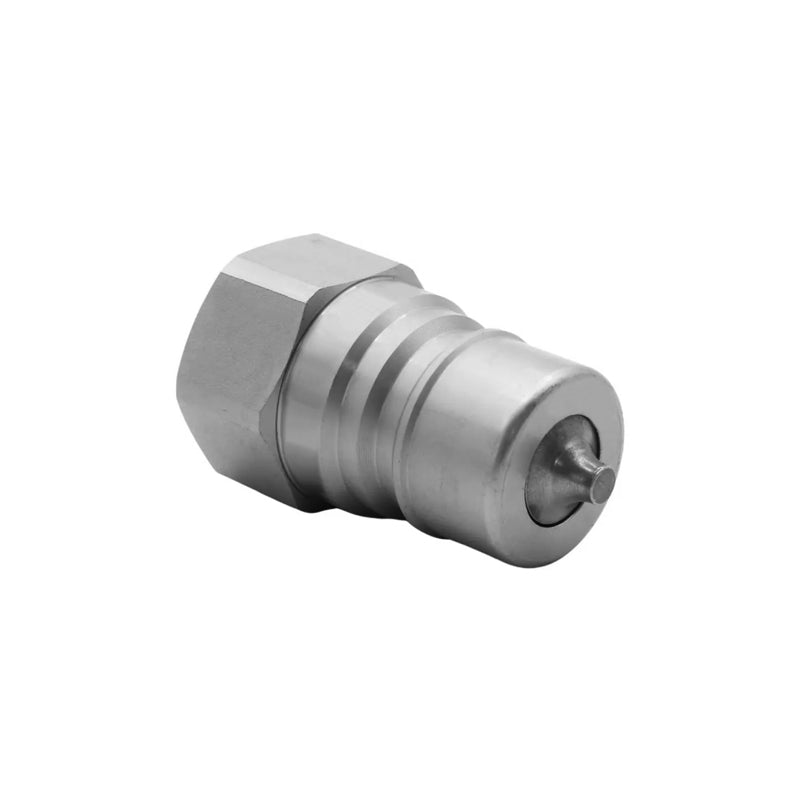

1/4 inch BSP Male Quick Release Coupling - ISO A - Allow 2-3 Days
In stock
Price Break
Description
BSP ISO A Male Quick Release Coupling: These quick-release couplings from our IA Series are designed for tough agricultural and industrial applications. Made from carbon steel with zinc-nickel plating, it offers exceptional corrosion resistance, lasting over 1200 hours in salt spray tests. This coupling features nitrile seals (with FKM options) and operates efficiently at temperatures from -40°C to 106°C. Its locking ball system ensures quick, secure connections, while balanced spring poppet valves allow for bidirectional flow. Complete your setup with available accessories like dust caps and seal kits. Choose this coupling for unmatched quality and reliability in your projects.
Benefits: Tough and durable design, high resistance to corrosion, quick connection locking ball system
- Brand / Quality:
- Simply Quick Release Couplings - High Quality
- Thread Size:
- 1/4 inch BSP
- Length:
- 35.5mm
- Max Working Pressure:
- 400 bar
Technical
| Thread Size | 1/4 inch |
|---|---|
| Total Length (D) | 35.5mm |
| Nut Size (H) | 19mm |
| Body Size (J) | 11.8mm |
| Maximum Working Pressure | 400 bar |
| Coupled Burst Pressure | 2200 bar |
| Male Burst Pressure | 1900 bar |
| Rated Flow | 3 lpm |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.038 kg |
