SKU: QRF-04-MB

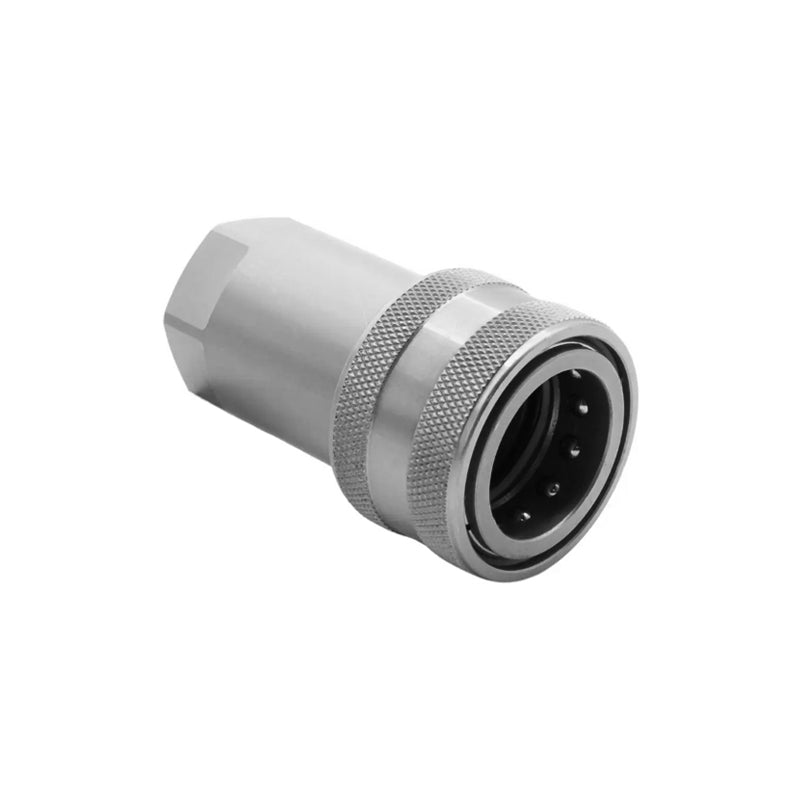

1/4 inch BSP Female Quick Release Coupling - ISO A - Allow 2-3 Days
In stock
Price Break
Description
BSP ISO A Female Quick Release Coupling: These quick-release coupling from our IA Series, are designed for durability in agricultural and industrial applications. Made from carbon steel with zinc-nickel plating, it provides outstanding corrosion resistance, lasting over 1200 hours in salt spray tests. Fitted with nitrile seals (FKM options available), it operates at temperatures from -40 Deg C to 106 Deg C. The quick connection locking ball system and balanced spring poppet valves ensure efficient bidirectional flow. Complete your setup with compatible accessories like dust caps and seal kits. Choose this coupling for superior quality and reliability in any project.
Benefits: Tough and durable design, high resistance to corrosion, quick connection locking ball system
- Brand / Quality:
- Simply Quick Release Couplings - High Quality
- Thread Size:
- 1/4 inch BSP
- Length:
- 50mm
- Max Working Pressure:
- 400 bar
Technical
| Thread Size | 1/4 inch |
|---|---|
| Body Size (D1) | 26mm |
| Total Length (F) | 50mm |
| Nut Size (I) | 19mm |
| Maximum Working Pressure | 400 bar |
| Coupled Burst Pressure | 2200 bar |
| Female Burst Pressure | 1800 bar |
| Rated Flow | 3 lpm |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.118 kg |
