SKU: PUMP-COUPLER-1/4-SNR

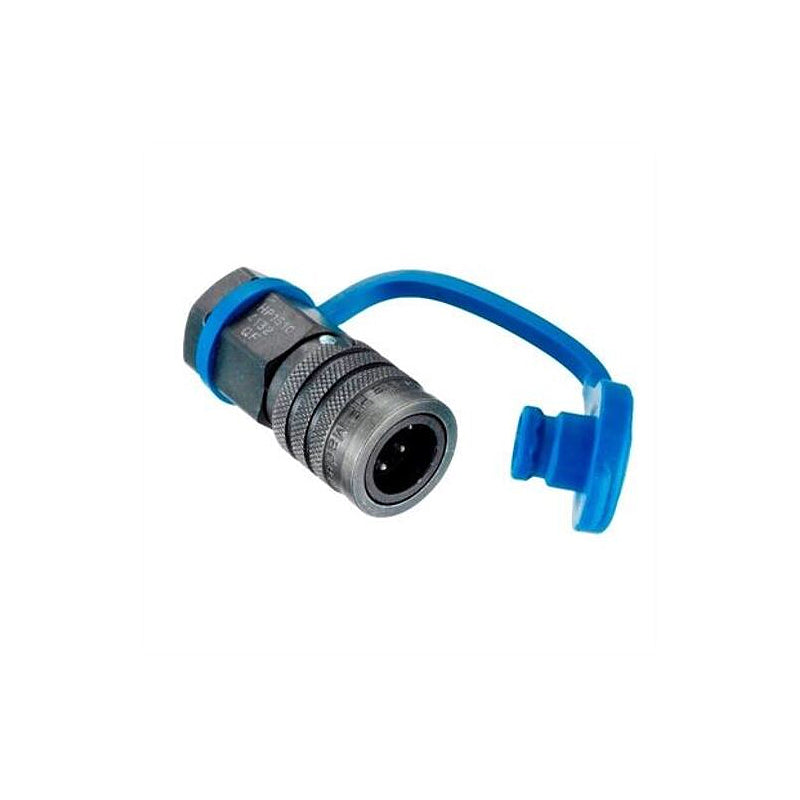

SNR Pump Coupling Connection with G 1/4 inch Thread - Allow 2-3 Days
SNR Pump Coupling Connection with G 1/4 inch Thread - Allow 2-3 Days
Regular price
£126.91
ex VAT£152.29inc. VAT
Regular price
Sale price
£126.91
ex VAT£152.29
inc. VAT
In stock
Price Break
10+
£112.95
19+
£106.60
29+
£105.34
39+
£104.07
49+
£102.80
74+
£101.53
99+
£95.18
199+
£93.91
249+
£92.64
499+
£91.38
999+
£88.84
Couldn't load pickup availability
Description
Description
SNR Coupling Connection: This replacement coupling/connector is compatible with the PUMP 700 bar Hydraulic Pump Kit which is available seperately.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

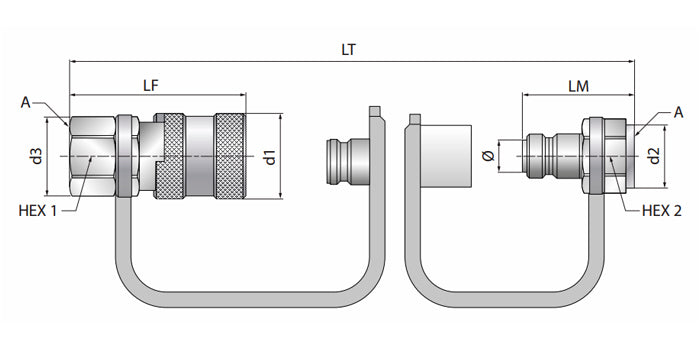

| Thread | G 1/4 inch |
|---|---|
| d1 | 28.2mm |
| d3 | 26.8mm |
| Nut Hex 1 | 24mm |
| LF | 59.5mm |
| d2 | 24.5mm |
| Nut Hex 2 | 22mm |
| LM | 38 |
| LT | 79.5mm |
| Nipple Diameter | 14.9mm |
| Reference Female Tool+ | Pump Coupling 1/4 inch |
| Weight | 0.192kg |
| Referance Male Tool+ | HMV Nipple 1/4 inch |
| Weight | 0.069kg |
