SKU: PSM142020A51-SKF

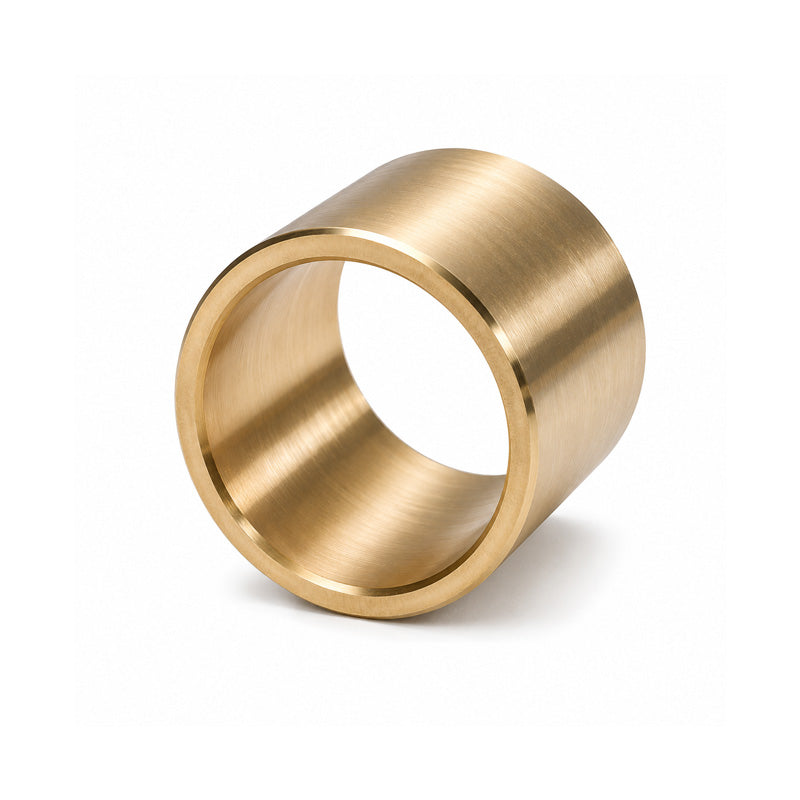

SKF PSM142020A51 Imperial Plain Sintered Bronze Bush 0.551x0.787x0.787 inch
SKF PSM142020A51 Imperial Plain Sintered Bronze Bush 0.551x0.787x0.787 inch
Regular price
£6.71
ex VAT£8.05inc. VAT
Regular price
Sale price
£6.71
ex VAT£8.05
inc. VAT
In stock
Price Break
9+
£5.97
19+
£5.63
29+
£5.57
39+
£5.50
49+
£5.43
69+
£5.37
99+
£5.03
199+
£4.96
249+
£4.90
499+
£4.83
999+
£4.69
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 14mm = 0.551 inch
- Outside Diameter:
- 20mm = 0.787 inch
- Length:
- 20mm = 0.787 inch
Technical
Technical
| d | 0.551 inch |
|---|---|
| D | 0.787 inch |
| B | 0.787 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.013 lbs |
