SKU: POS30.EU

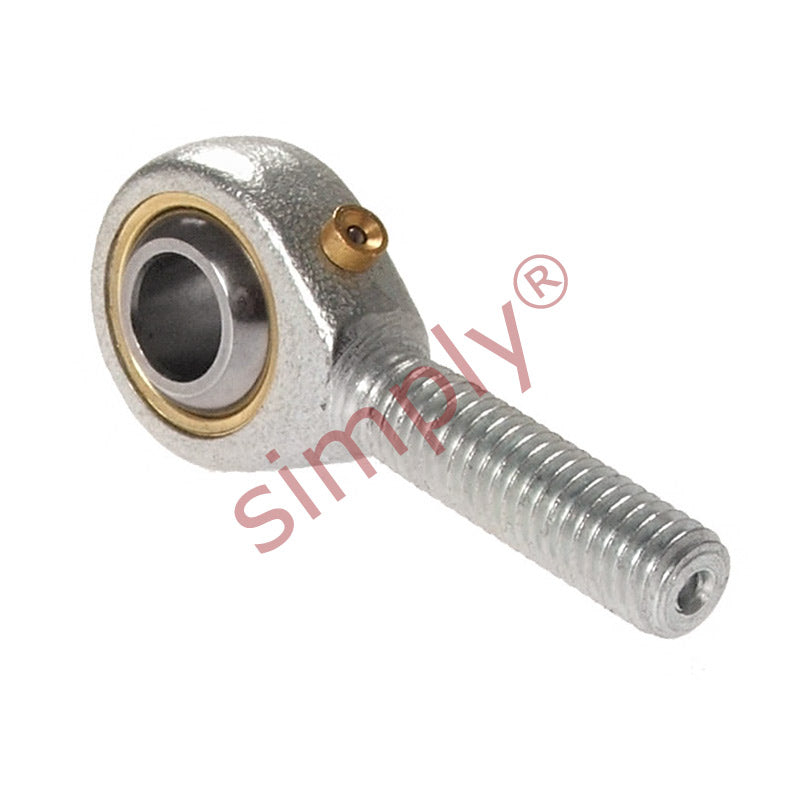

Budget POS30 Right Hand Steel / Bronze Lined Plain Male Rod End 30mm Bore M30x2 Thread
Budget POS30 Right Hand Steel / Bronze Lined Plain Male Rod End 30mm Bore M30x2 Thread
Regular price
£59.38
ex VAT£71.26inc. VAT
Regular price
Sale price
£59.38
ex VAT£71.26
inc. VAT
Equivalent to: GAKFR30PB SAKAC30M SM30 MB-M30
In stock
Price Break
10+
£52.84
19+
£49.88
29+
£49.28
39+
£48.69
49+
£48.09
74+
£47.50
99+
£44.53
199+
£43.94
249+
£43.34
499+
£42.75
999+
£41.56
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR30PB SAKAC30M SM30 MB-M30
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 30mm
- Material:
- Bronze Lined
Technical
Technical
| d | 30mm |
|---|---|
| B | 37mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 34.8mm |
| d2 | 70mm |
| d3 | M30x2 |
| h | 110mm |
| l1 | 66mm |
| l2 | 145mm |
| Ball diameter | 2 inch |
| Dynamic load Cr | 63.5 kN |
| Static load Cor | 94 kN |
| Max angle α | 17 |
| Weight | 1.07 kg |
