SKU: POS20.EU

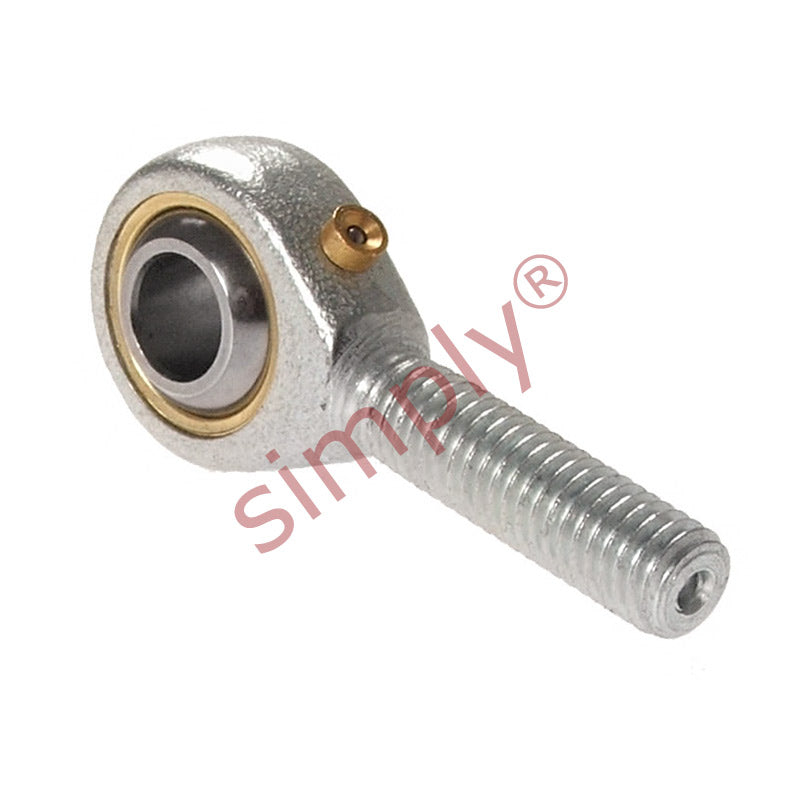

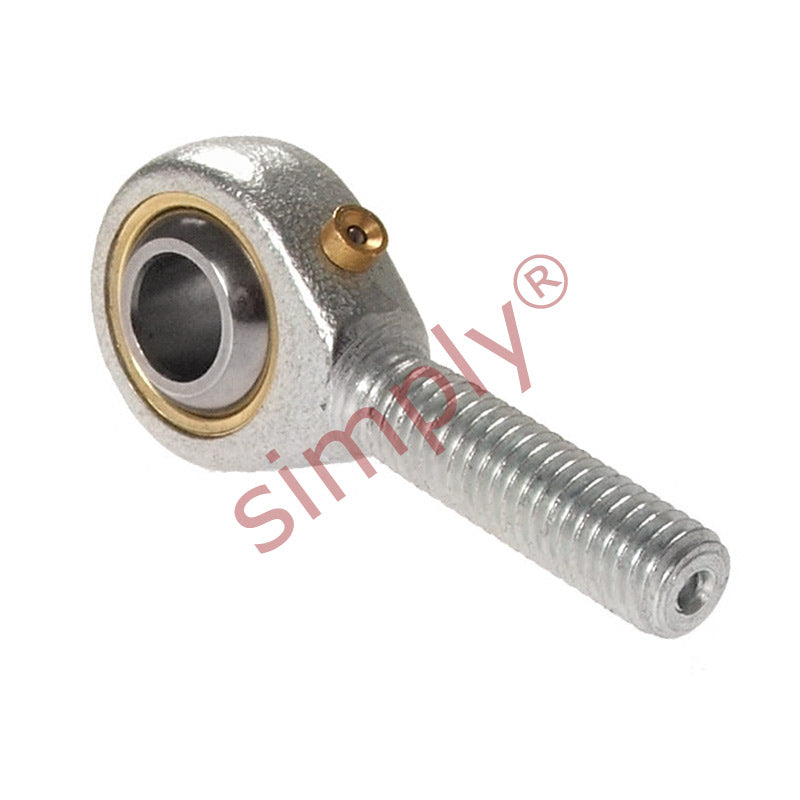

Budget POS20 Right Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
Budget POS20 Right Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
Regular price
£15.26
ex VAT£18.31inc. VAT
Regular price
Sale price
£15.26
ex VAT£18.31
inc. VAT
Equivalent to: GAKFR20PB SAKAC20M SM20 MB-M20
In stock
Price Break
10+
£13.58
19+
£12.82
29+
£12.67
39+
£12.51
49+
£12.36
74+
£12.21
99+
£11.45
199+
£11.29
249+
£11.14
499+
£10.99
999+
£10.68
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR20PB SAKAC20M SM20 MB-M20
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| B | 25mm |
| r1 | 0.6mm |
| C1 | 18mm |
| d1 max | 24.3mm |
| d2 | 46mm |
| d3 | M20x1.5 |
| h | 78mm |
| l1 | 47mm |
| l2 | 101mm |
| Ball diameter | 1-3/8 inch |
| Dynamic load Cr | 31.4 kN |
| Static load Cor | 36.2 kN |
| Max angle α | 14 |
| Weight | 0.34 kg |
