SKU: POS16A

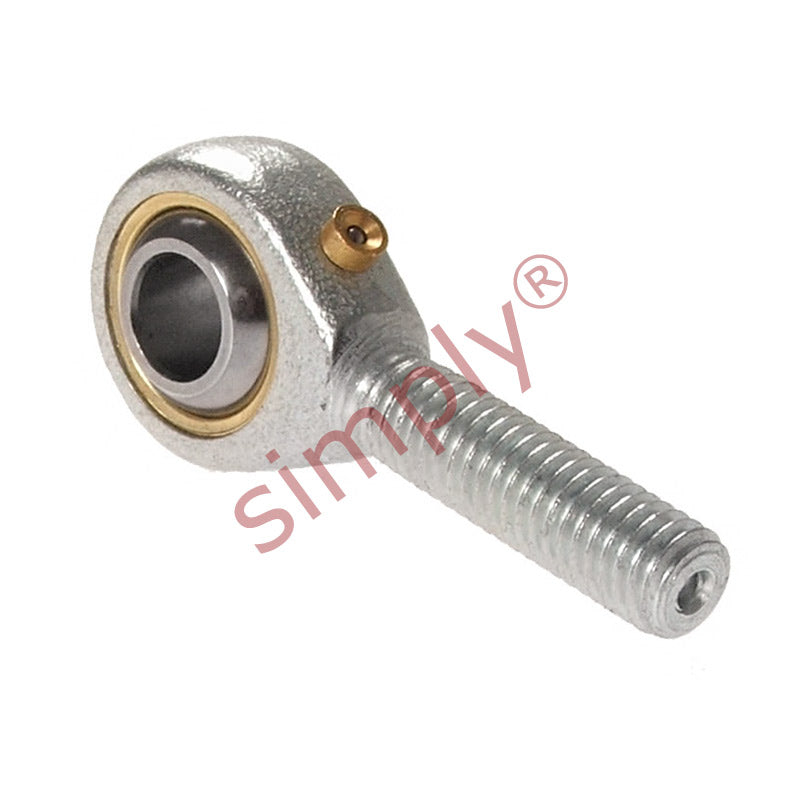

Branded POS16A Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Branded POS16A Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Regular price
£23.56
ex VAT£28.27inc. VAT
Regular price
Sale price
£23.56
ex VAT£28.27
inc. VAT
In stock
Price Break
10+
£20.97
19+
£19.79
29+
£19.56
39+
£19.32
49+
£19.09
74+
£18.85
99+
£17.67
199+
£17.44
249+
£17.20
499+
£16.96
999+
£16.49
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x2
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle a | 15 |
| Weight | 0.185 kg |
