SKU: POS10.EU

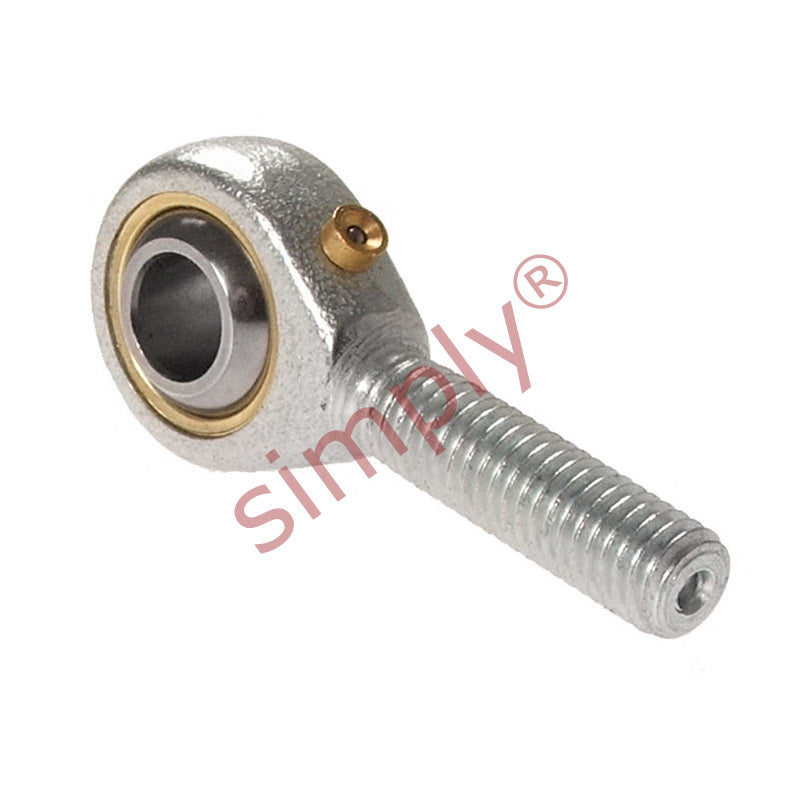

Budget POS10 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
Budget POS10 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
Regular price
£5.33
ex VAT£6.40inc. VAT
Regular price
Sale price
£5.33
ex VAT£6.40
inc. VAT
Equivalent to: GAKFR10PB SAKAC10M SM10 MB-M10
In stock
Price Break
10+
£4.75
19+
£4.48
29+
£4.43
39+
£4.37
49+
£4.32
74+
£4.27
99+
£4.00
199+
£3.95
249+
£3.89
499+
£3.84
999+
£3.73
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR10PB SAKAC10M SM10 MB-M10
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- Bronze Lined
Technical
Technical
| d | 10mm |
|---|---|
| B | 14mm |
| r1 | 0.6mm |
| C1 | 10.5mm |
| d1 max | 12.9mm |
| d2 | 26mm |
| d3 | M10x1.5 |
| h | 48mm |
| l1 | 29mm |
| l2 | 61mm |
| Ball diameter | 3/4 inch |
| Dynamic load Cr | 10 kN |
| Static load Cor | 13.6 kN |
| Max angle α | 13 |
| Weight | 0.054 kg |
