SKU: PHS20.EU

Budget PHS20 Right Hand Steel / Bronze Lined Plain Female Rod End 20mm Bore M20x1.5 Thread

Name: Budget PHS20 Right Hand Steel / Bronze Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
Brand: Gen
SKU: PHS20.EU
Price: 11.00 GBP
Availability: InStock

£11.00 ex VAT£13.20inc. VAT

£11.00 ex VAT£13.20 inc. VAT

Sale Sold out

Equivalent to: GIKFR20PB SIKAC20M SF20 FB-M20

In stock

Price Break

10+ £9.79

19+ £9.24

29+ £9.13

39+ £9.02

49+ £8.91

74+ £8.80

99+ £8.25

199+ £8.14

249+ £8.03

499+ £7.92

999+ £7.70

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: GIKFR20PB SIKAC20M SF20 FB-M20

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 20mm
Material:: Bronze Lined

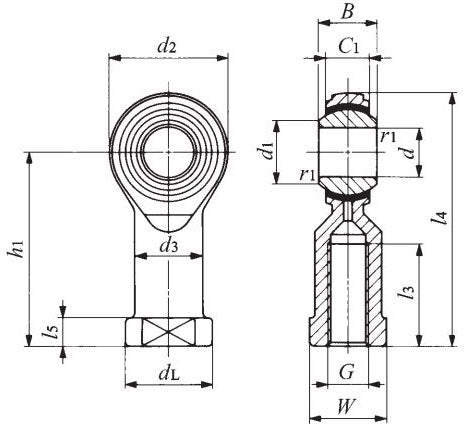

Technical

d	20mm
B	25mm
r1	0.6mm
C1	18mm
d1 max	24.3mm
d2	46mm
d3	M20x1.5
h1	77mm
L3	40mm
L4	100mm
L5	10mm
d4	27.5mm
d5	34mm
S	30mm
Ball diameter	1-3/8 inch
Dynamic load Cr	31.4 kN
Static load Cor	36.2 kN
Max angle α	14
Weight	0.38 kg
