SKU: PHR-4-1/2

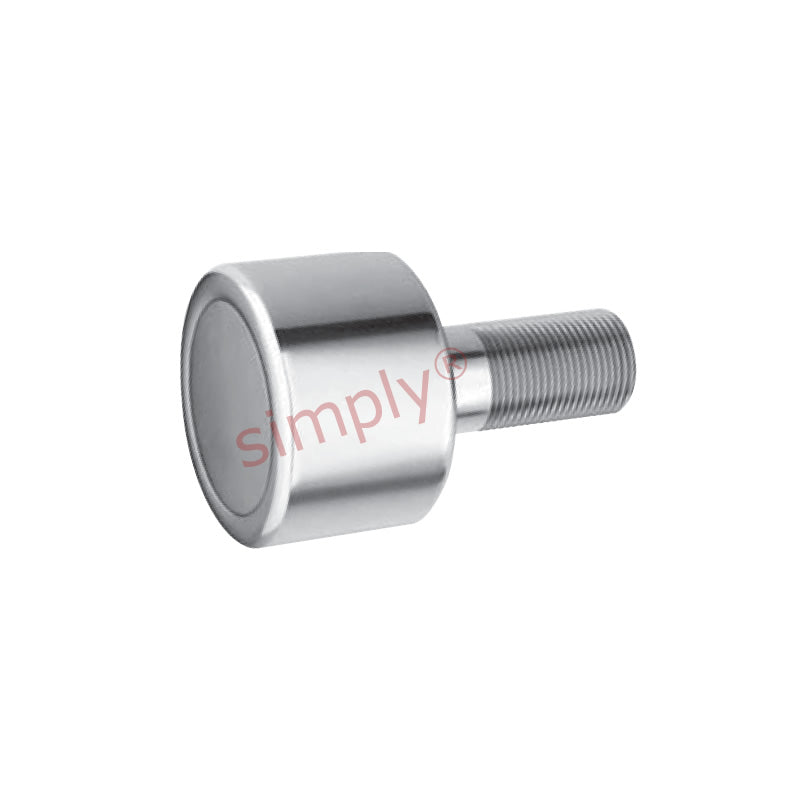

Major Brand PHR4-1/2 Hex Head Plain Hi-Roller Bearing 4-1/2 inch Outside Diameter
Major Brand PHR4-1/2 Hex Head Plain Hi-Roller Bearing 4-1/2 inch Outside Diameter
Regular price
£332.78
ex VAT£399.34inc. VAT
Regular price
Sale price
£332.78
ex VAT£399.34
inc. VAT
Equivalent to: PHR-450-A PLR-4-1/2 PCF-4-1/2 PCR-4-1/2
In stock
Price Break
3+
£296.17
4+
£279.53
9+
£276.20
19+
£272.88
29+
£269.55
39+
£266.22
49+
£249.58
59+
£246.25
249+
£242.93
499+
£239.60
999+
£232.94
Description
Description
|
Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: PHR-450-A PLR-4-1/2 PCF-4-1/2 PCR-4-1/2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 4.5 inch |
|---|---|
| B | 2 inch |
| C | 1.25 inch |
| D | 2.75 inch |
| E | 1.75 inch |
| Thread class 2A F | 1-1/4-12 UNF |
| G | 1.75 inch |
| S | 0.062 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
