SKU: PCJ404616-NTN

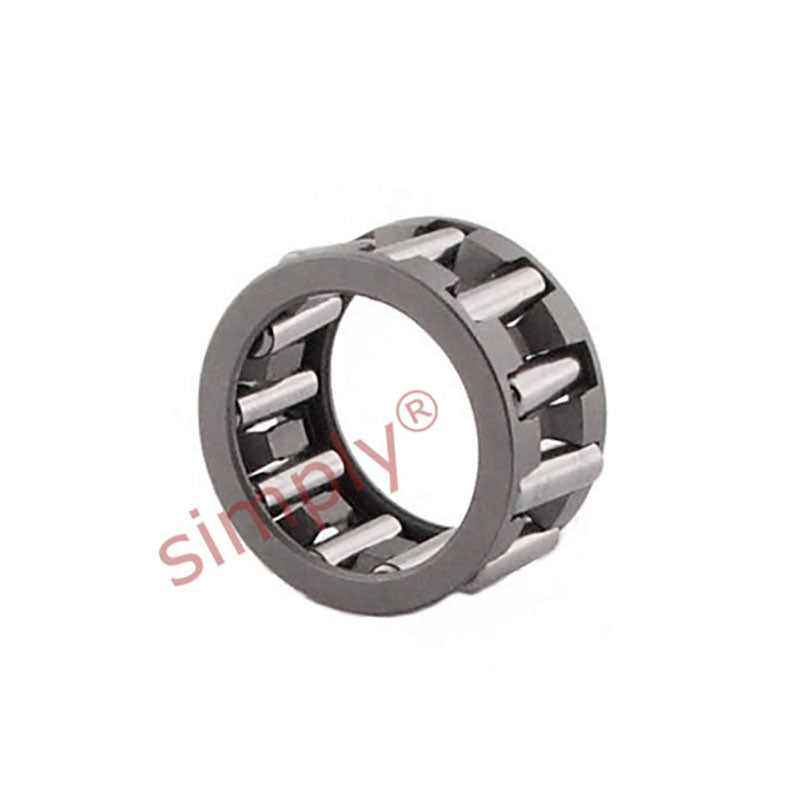

NTN PCJ404616 Needle Roller and Cage Assembly 2-1/2x2-7/8x1 inch - Allow 2-3 Days
NTN PCJ404616 Needle Roller and Cage Assembly 2-1/2x2-7/8x1 inch - Allow 2-3 Days
Regular price
£39.88
ex VAT£47.86inc. VAT
Regular price
Sale price
£39.88
ex VAT£47.86
inc. VAT
In stock
Price Break
3+
£39.48
4+
£37.89
9+
£37.09
19+
£35.89
49+
£35.09
99+
£33.10
499+
£27.92
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Width:
- 25.4mm = 1 (1) inch
Technical
Technical

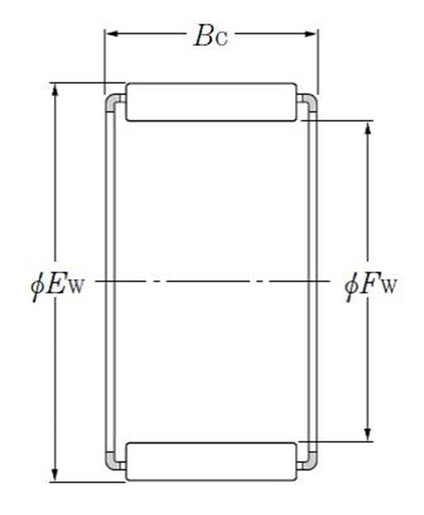

| Fw - Inside diameter | 63.5mm |
|---|---|
| Ew - Outside diameter | 73.025mm |
| Bc - Cage width | 25.4mm |
| Cr - Dynamic load rating | 61.5 kN |
| C0r - Static load rating | 117 kN |
| N - Grease lubrication limit speed | 4000 tr/min |
| N - Oil lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
