SKU: PBY25-XL-INA

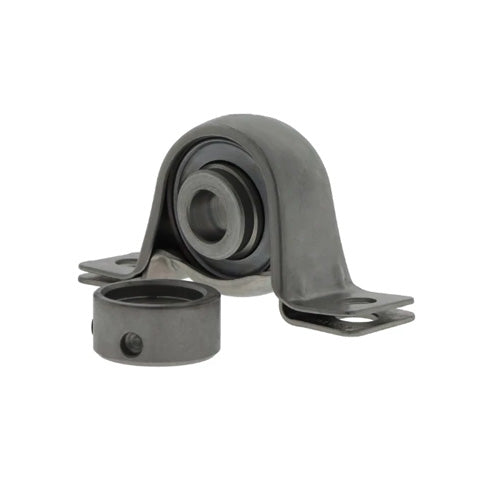

INA PBY25XL Sheet Steel Plummer Block Housing with Grub Screw Insert 25mm Bore
INA PBY25XL Sheet Steel Plummer Block Housing with Grub Screw Insert 25mm Bore
Regular price
£27.19
ex VAT£32.63inc. VAT
Regular price
Sale price
£27.19
ex VAT£32.63
inc. VAT
In stock
Price Break
10+
£24.20
19+
£22.84
29+
£22.57
39+
£22.30
49+
£22.02
74+
£21.75
99+
£20.39
199+
£20.12
249+
£19.85
499+
£19.58
999+
£19.03
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PBY
- Bolt Hole Centres:
- 86mm
Technical
Technical
| d | 25mm |
|---|---|
| L | 108mm |
| H2 | 56.5mm |
| A | 31.8mm |
| A1 | 23.5mm |
| B | 27mm |
| H | 28.6mm |
| H1 | 4mm |
| J | 86mm |
| N | 11.5mm |
| S1 | 19.5mm |
| Mass | 0.26 kg |
| Load carrying capacity of housing Cor G | 1800 N |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | GEH52-BT? |
| Designation of bearing | AY25-XL-NPP-B? |
