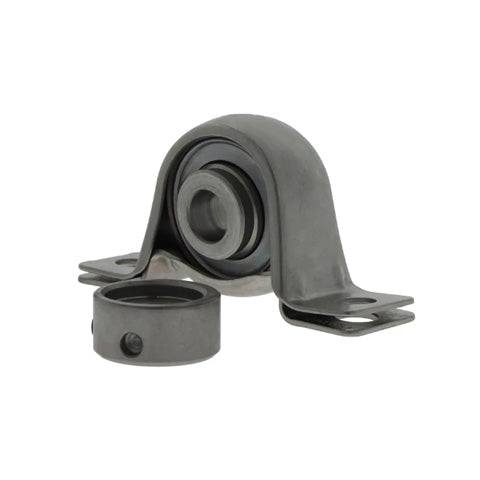

INA PBY17XL Sheet Steel Plummer Block Housing with Grub Screw Insert 17mm Bore
INA PBY17XL Sheet Steel Plummer Block Housing with Grub Screw Insert 17mm Bore
Regular price
£21.59
ex VAT£25.91inc. VAT
Regular price
Sale price
£21.59
ex VAT£25.91
inc. VAT
In stock
Price Break
10+
£19.22
19+
£18.14
29+
£17.92
39+
£17.70
49+
£17.49
74+
£17.27
99+
£16.19
199+
£15.98
249+
£15.76
499+
£15.54
999+
£15.11
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Style:
- PBY
- Bolt Hole Centres:
- 68mm
Technical
Technical

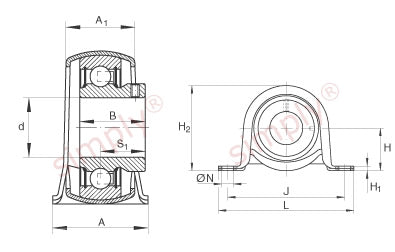

| d | 17mm |
|---|---|
| L | 85.7mm |
| H2 | 43.2mm |
| A | 25.4mm |
| A1 | 18.4mm |
| B | 22mm |
| H | 22.2mm |
| H1 | 2.6mm |
| J | 68mm |
| N | 9.5mm |
| S1 | 16mm |
| Mass | 0.15 kg |
| Load carrying capacity of housing Cor G | 1350 N |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | GEH40-BT? |
| Designation of bearing | AY17-XL-NPP-B? |
