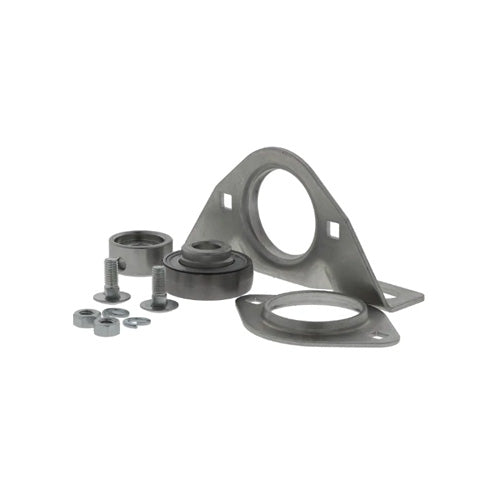

INA PBS35XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 35mm Bore
INA PBS35XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 35mm Bore
Regular price
£49.41
ex VAT£59.29inc. VAT
Regular price
Sale price
£49.41
ex VAT£59.29
inc. VAT
In stock
Price Break
10+
£43.97
19+
£41.50
29+
£41.01
39+
£40.52
49+
£40.02
74+
£39.53
99+
£37.06
199+
£36.56
249+
£36.07
499+
£35.58
999+
£34.59
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- PBS
- Bolt Hole Centres:
- 127mm
Technical
Technical
| d | 35mm |
|---|---|
| L | 165mm |
| H2 | 94.4mm |
| A | 46.1mm |
| A1 | 22.2mm |
| B1 | 39mmd3 max |
| 55mm | H |
| 47.6mm | H1 |
| 4mm | J |
| 127mm | N |
| 13.5mm | N1 |
| 8mm | P |
| 35mm | S |
| 20.7mm | S1 |
| 29.5mm | Mass |
| 1.05 kg | Load carrying capacity of housing Cor G |
| 4100 N | Basic dynamic load rating Cr |
| 27500 N | Basic static load rating Cor |
| 15300 N | Designation of housing |
| GEH72-PBS? | Designation of bearing |
| RAE35-XL-NPP-B? | N/A |
