SKU: PBS-DS-10B-19

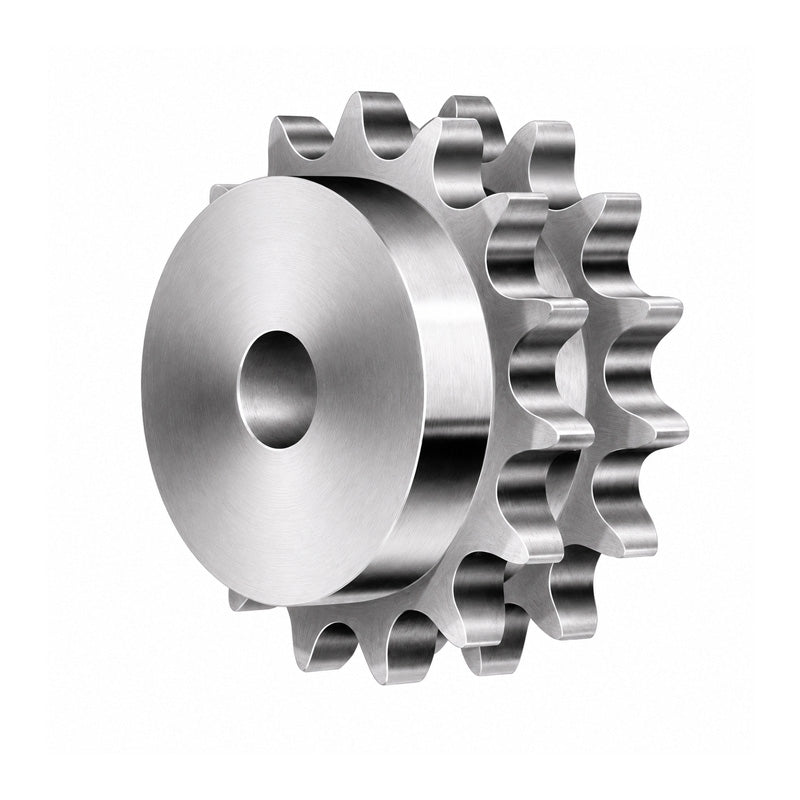

19 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
19 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
Regular price
£13.90
ex VAT£16.68inc. VAT
Regular price
Sale price
£13.90
ex VAT£16.68
inc. VAT
Equivalent to: 661-027 DS10B1-19 5DS19
In stock
Price Break
10+
£12.37
19+
£11.68
29+
£11.54
39+
£11.40
49+
£11.26
74+
£11.12
99+
£10.43
199+
£10.29
249+
£10.15
499+
£10.01
999+
£9.73
Couldn't load pickup availability
Description
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-027 DS10B1-19 5DS19
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-027 DS10B1-19 5DS19
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 19
- Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 19 |
|---|---|
| Pitch Diameter dp | 96.45mm |
| Outer Diameter de | 103.3mm |
| Width B | 36.5mm |
| Hub Diameter N | 80mm |
| Chamfer C | 1.6mm |
| Tooth Radius r3 | 16mm |
| Tooth Width b1 | 9.2mm |
| Stock Bore D1 | 19mm |
| Weight | 0.819 kg |
