SKU: PBS-DS-06B-19-DF

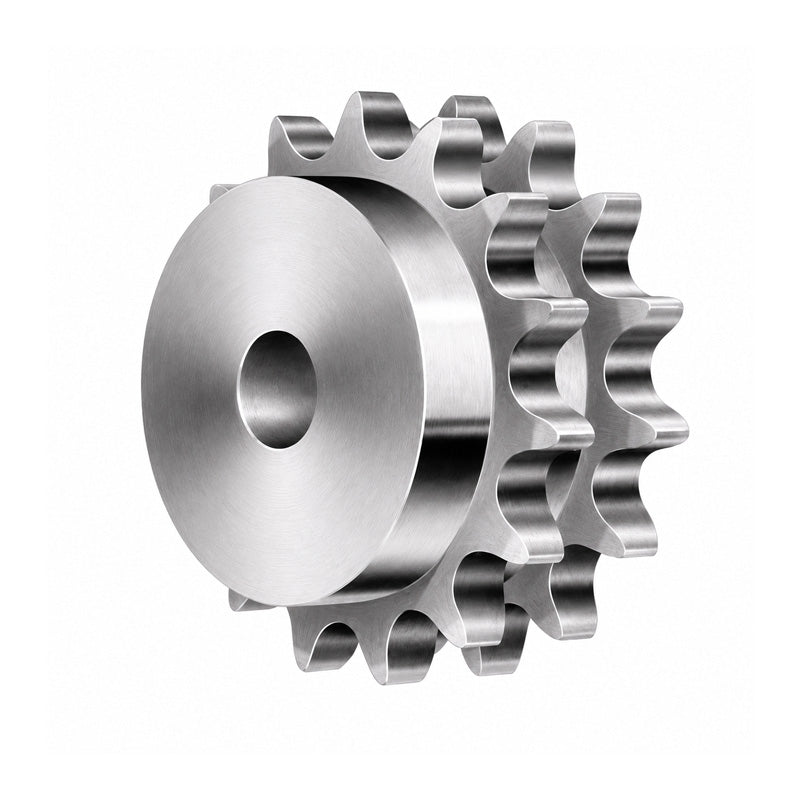

Drive-Flex 19 Tooth 06B Pilot Bore Double Simplex Sprocket for 3/8 inch Pitch Chain - Allow 2-3 Days
Drive-Flex 19 Tooth 06B Pilot Bore Double Simplex Sprocket for 3/8 inch Pitch Chain - Allow 2-3 Days
Regular price
£13.27
ex VAT£15.92inc. VAT
Regular price
Sale price
£13.27
ex VAT£15.92
inc. VAT
Equivalent to: DS06B1-19 661-006 3DS19
In stock
Price Break
5+
£13.14
10+
£12.61
20+
£12.34
50+
£11.94
100+
£11.68
500+
£11.01
1000+
£9.29
Couldn't load pickup availability
Description
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: DS06B1-19 661-006 3DS19
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: DS06B1-19 661-006 3DS19
- Brand / Quality:
- Drive-Flex - High Quality
- Number of Teeth:
- 19
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 19 |
|---|---|
| Pitch Diameter dp | 57.87mm |
| Outer Diameter de | 61.3mm |
| Hub Diameter N | 46mm |
| Chamfer C | 23.5mm |
| Tooth Radius r3 | 1mm |
| Tooth Width b1 | 10mm |
| Stock Bore D1 | 10mm |
| Weight | 5.3 kg |
