SKU: P23-L-050F

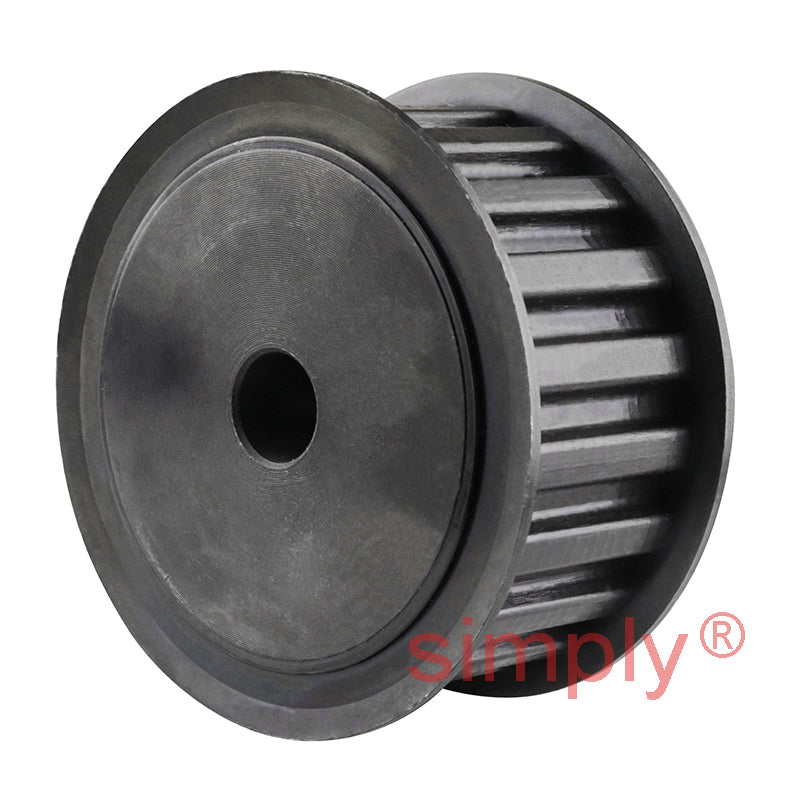

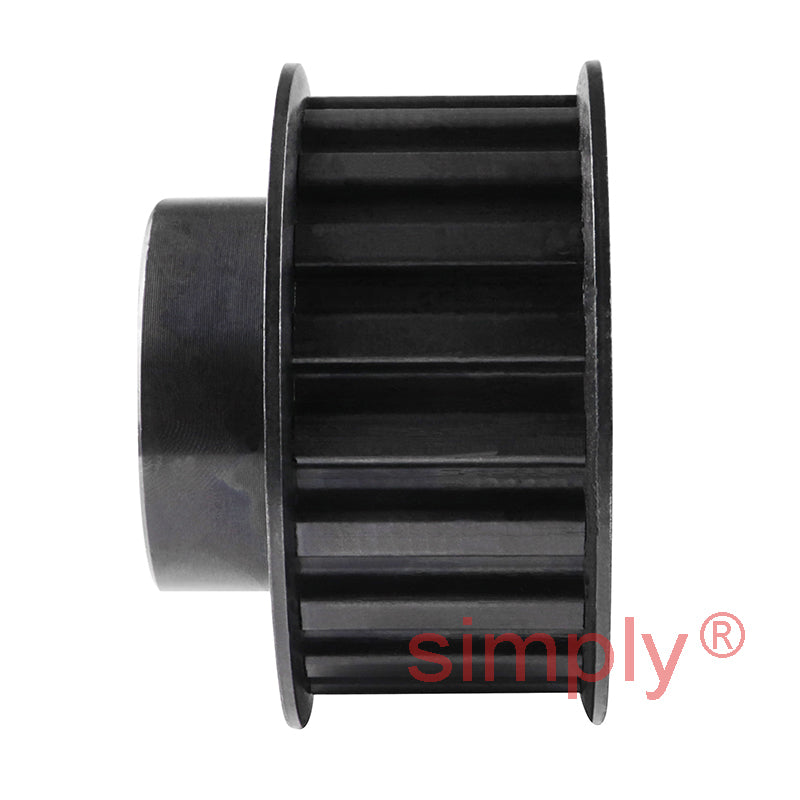

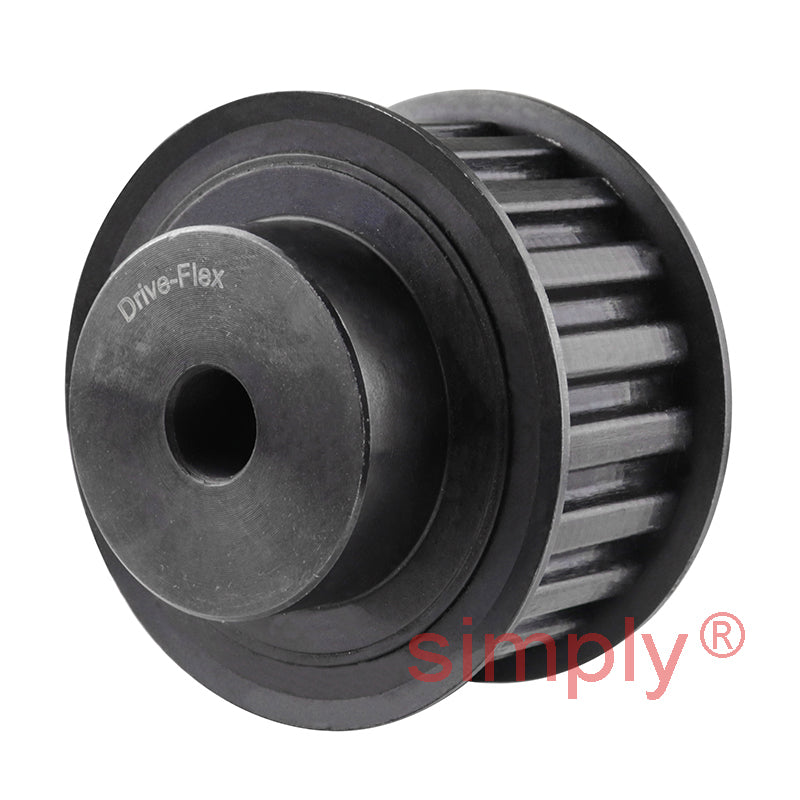

P23-L-050F - 3/8 inch Pitch 23 Tooth Flanged Pilot Bored Steel Timing Pulley for 1/2 inch Wide Belts
P23-L-050F - 3/8 inch Pitch 23 Tooth Flanged Pilot Bored Steel Timing Pulley for 1/2 inch Wide Belts
Regular price
£13.72
ex VAT£16.46inc. VAT
Regular price
Sale price
£13.72
ex VAT£16.46
inc. VAT
Equivalent to: P23L050F
In stock
Price Break
3+
£12.22
5+
£11.53
9+
£11.39
19+
£11.25
49+
£11.12
74+
£10.98
99+
£10.29
199+
£10.16
249+
£10.02
499+
£9.88
999+
£9.61
Description
Description
Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Equivalent: P23L050F
- Brand / Quality:
- Drive-Flex - High Quality
- Teeth:
- 23
- Material:
- Steel
- Belt Width Approx:
- 12.7mm = 0.5 (1/2) inch
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- Flanged Pilot Bored Pulley
Technical
Technical
| No. teeth | 23 |
|---|---|
| Dp | 69.73mm |
| De | 68.97mm |
| Df | 79mm |
| Dm | 55mm |
| F | 19mm |
| L | 32mm |
| d | 10mm |
| No. flanges | 2 |
| Material | Steel |
| Bore | Pilot Bored |
| Belt Width | 12.7mm = 0.5 (1/2) inch |
| Pitch | 9.53mm = 0.375 (3/8) inch |
