SKU: P20TF-SKF

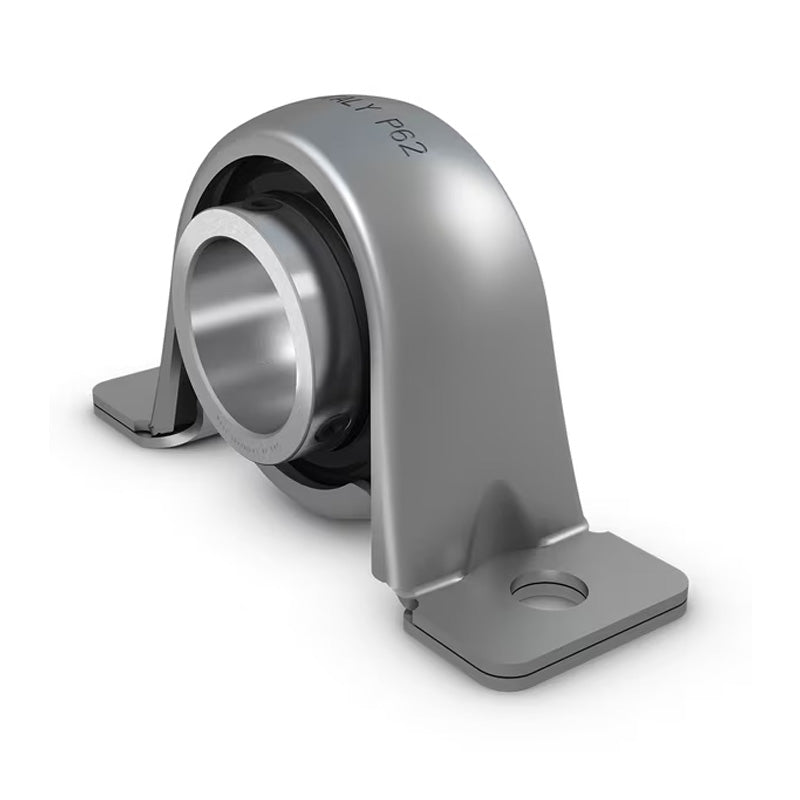

SKF P20TF Pressed Steel Plummer Block with Grub Screw Insert 20mm Bore - Allow 2-3 Days
SKF P20TF Pressed Steel Plummer Block with Grub Screw Insert 20mm Bore - Allow 2-3 Days
Regular price
£498.50
ex VAT£598.20inc. VAT
Regular price
Sale price
£498.50
ex VAT£598.20
inc. VAT
In stock
Price Break
10+
£493.52
20+
£473.58
30+
£463.61
40+
£448.65
50+
£438.68
75+
£413.76
100+
£348.95
200+
£0.00
250+
£0.00
500+
£0.00
1000+
£0.00
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- P
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| A1 | 21mm |
| B | 31mm |
| H | 50mm |
| H1 | 25.2mm |
| H2 | 3mm |
| J | 76mm |
| L | 99mm |
| N | 9.6mm |
| G | 8mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Permissible housing load radial | 1.7 kN |
| Weight | 0.22 kg |
| Housing | YAR204-2F |
| Insert | P47 |
