SKU: NX20-MB

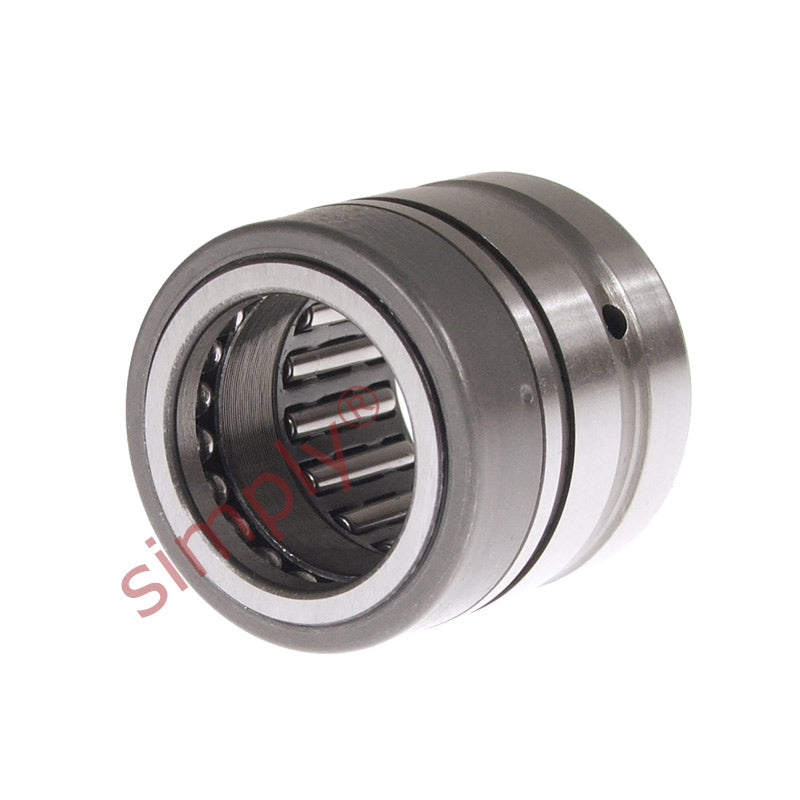

Major Brand NX20 Needle Roller / Full Complement Thrust Ball Bearing 20x30x28mm

Major Brand NX20 Needle Roller / Full Complement Thrust Ball Bearing 20x30x28mm
Regular price £57.89 ex VAT£69.47inc. VAT
Regular price Sale price £57.89 ex VAT£69.47 inc. VAT
Sale Sold out

In stock

Price Break
10+ £51.52
19+ £48.63
29+ £48.05
39+ £47.47
49+ £46.89
74+ £46.31
99+ £43.42
199+ £42.84
249+ £42.26
499+ £41.68
999+ £40.52
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw 20mm
D 30mm
C 28mm
Dynamic load 13400 N
Static load 19600 N
Axial dynamic load 7800 N
Axial static load 17300 N
Fatigue load limit radial Pu 2280 N
Fatigue load limit axial Pu 640 N
Min load factor A 1.6
Speed in oil 6300 rpm
C1 8mm
d 20mm
r1r2 min 0.3mm
da 25mm
Da max 28mm
Ca 12.2mm
ra max 0.3mm
di 17mm
F 20mm
Bi 16mm
Inner Ring IR17x20x16
Retaining Ring SW30
Weight 68 g
