SKU: NX15-MB

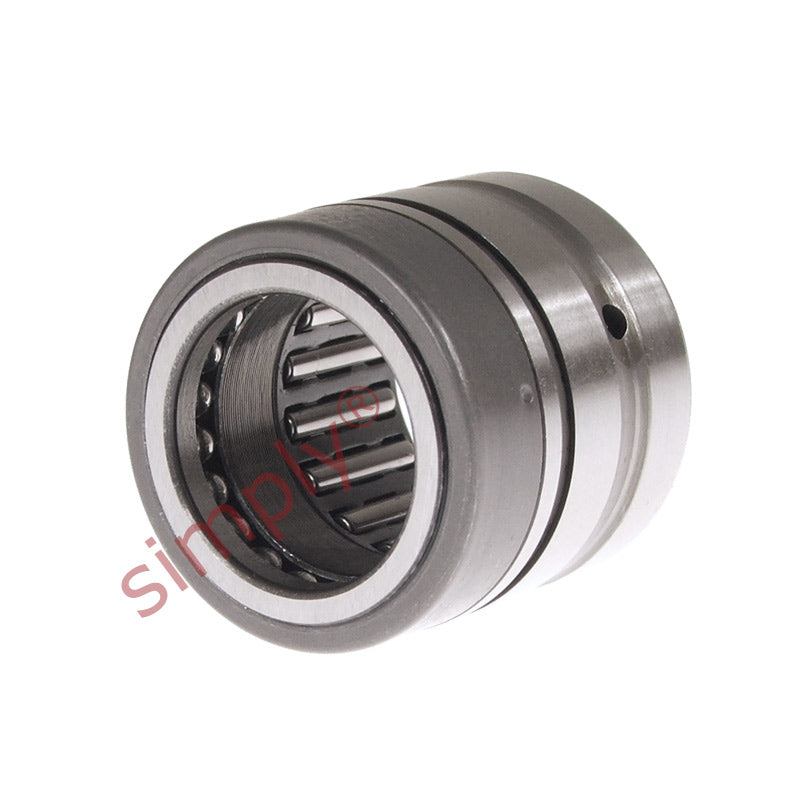

Major Brand NX15 Needle Roller / Full Complement Thrust Ball Bearing 15x24x28mm

Major Brand NX15 Needle Roller / Full Complement Thrust Ball Bearing 15x24x28mm
Regular price £32.36 ex VAT£38.83inc. VAT
Regular price Sale price £32.36 ex VAT£38.83 inc. VAT
Sale Sold out

In stock

Price Break
10+ £28.80
19+ £27.18
29+ £26.86
39+ £26.53
49+ £26.21
74+ £25.89
99+ £24.27
199+ £23.94
249+ £23.62
499+ £23.30
999+ £22.65
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw 15mm
D 24mm
C 28mm
Dynamic load 11200 N
Static load 14000 N
Axial dynamic load 6180 N
Axial static load 12200 N
Fatigue load limit radial Pu 1660 N
Fatigue load limit axial Pu 450 N
Min load factor A 0.77
Speed in oil 7500 rpm
C1 8mm
d 15mm
r1r2 min 0.3mm
da 19mm
Da max 22mm
Ca 12.2mm
ra max 0.3mm
di 12mm
F 15mm
Bi 16mm
Inner Ring IR12x15x16
Retaining Ring SW24
Weight 48 g
