SKU: NUP203-EU

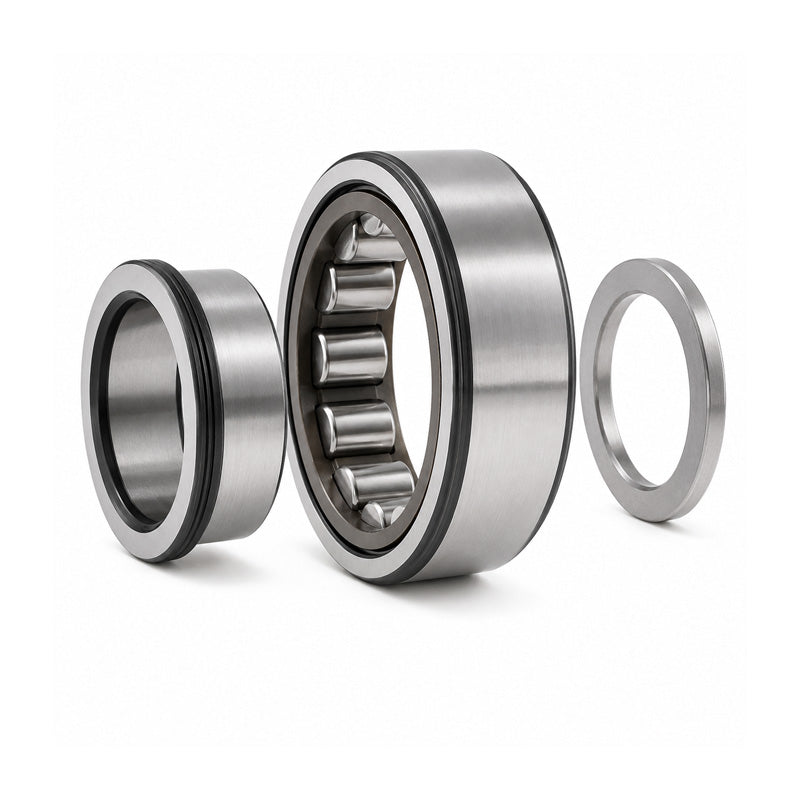

NUP203 Budget Single Row Cylindrical Roller Bearing 17x40x12mm
NUP203 Budget Single Row Cylindrical Roller Bearing 17x40x12mm
Regular price
£23.81
ex VAT£28.57inc. VAT
Regular price
Sale price
£23.81
ex VAT£28.57
inc. VAT
In stock
Price Break
10+
£21.19
19+
£20.00
29+
£19.76
39+
£19.52
49+
£19.28
74+
£19.05
99+
£17.86
199+
£17.62
249+
£17.38
499+
£17.14
999+
£16.67
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load C | 17.2 kN |
| Static load Co | 14.3 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 19000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.073 kg |
| Cage options | ML |
| d1 | 25mm |
| D1 | 32.4mm |
| F, E | 22.1mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| da min | 21.2mm |
| db min | 27mm |
| Da max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| kr | 0.15 |
