SKU: NU411-EU

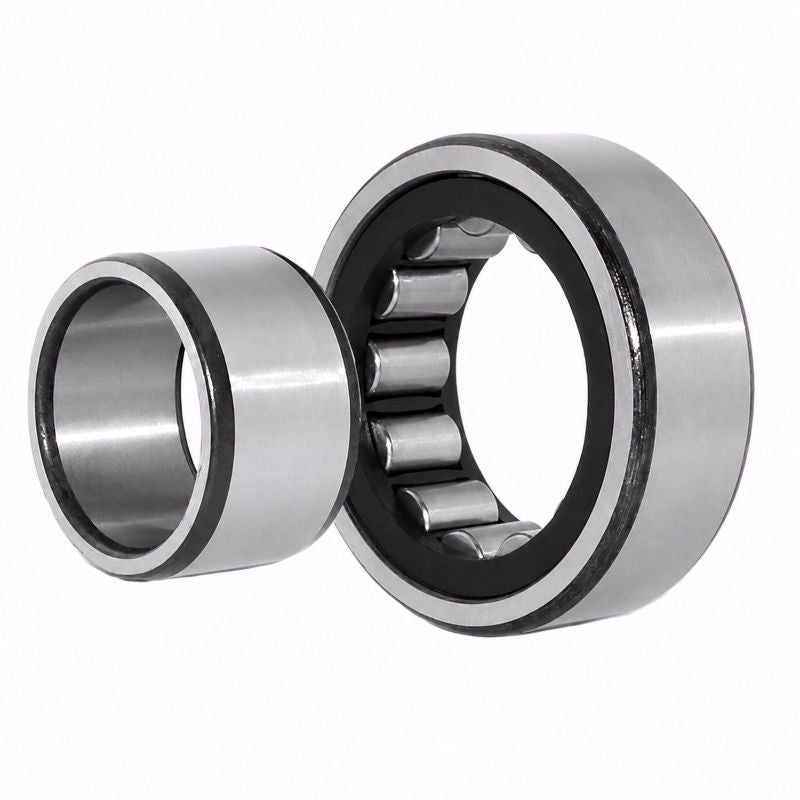

NU411 Budget Single Row Cylindrical Roller Bearing 55x140x33mm
NU411 Budget Single Row Cylindrical Roller Bearing 55x140x33mm
Regular price
£155.72
ex VAT£186.86inc. VAT
Regular price
Sale price
£155.72
ex VAT£186.86
inc. VAT
In stock
Price Break
10+
£138.59
19+
£130.81
29+
£129.25
39+
£127.69
49+
£126.14
74+
£124.58
99+
£116.79
199+
£115.24
249+
£113.68
499+
£112.12
999+
£109.01
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 142 kN |
| Static load Co | 140 kN |
| Fatigue load limit Pu | 18.6 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6300 rpm |
| Weight | 2.5 kg |
| d1 | 85.2mm |
| D1 | 108mm |
| F, E | 77.2mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.6mm |
| da min | 69mm |
| da max | 74mm |
| db min | 79mm |
| Da max | 126mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
