SKU: NU314ECM/C3-SKF

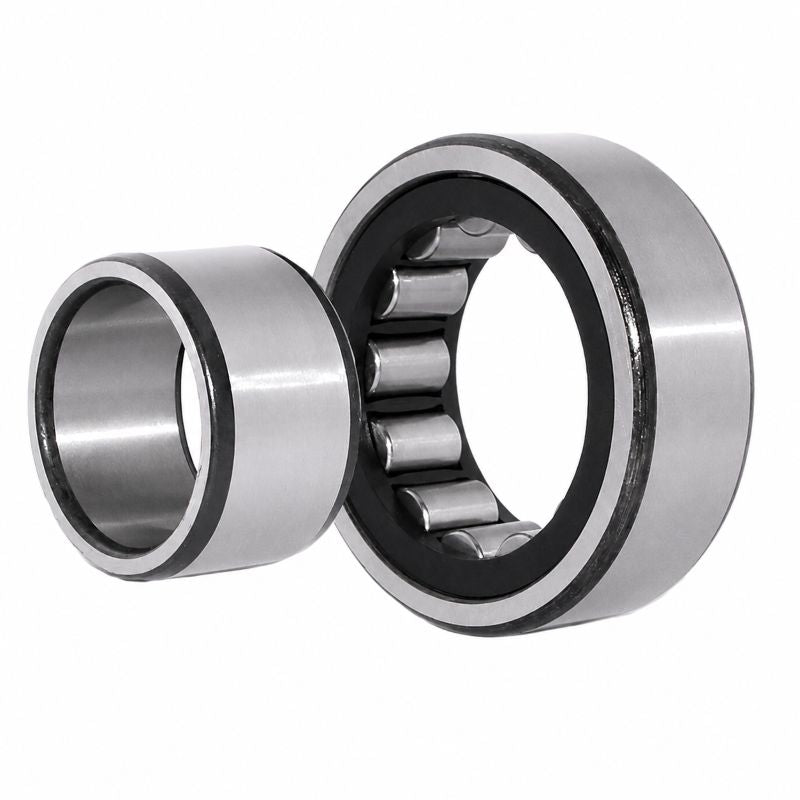

SKF NU314ECMC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 70x150x35mm
SKF NU314ECMC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 70x150x35mm
Regular price
£343.94
ex VAT£412.73inc. VAT
Regular price
Sale price
£343.94
ex VAT£412.73
inc. VAT
In stock
Price Break
10+
£306.11
19+
£288.91
29+
£285.47
39+
£282.03
49+
£278.59
74+
£275.15
99+
£257.95
199+
£254.51
249+
£251.08
499+
£247.64
999+
£240.76
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 236 kN |
| Static load Co | 228 kN |
| Fatigue load limit Pu | 29 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.7 kg |
