SKU: NU2330ECMA-EU

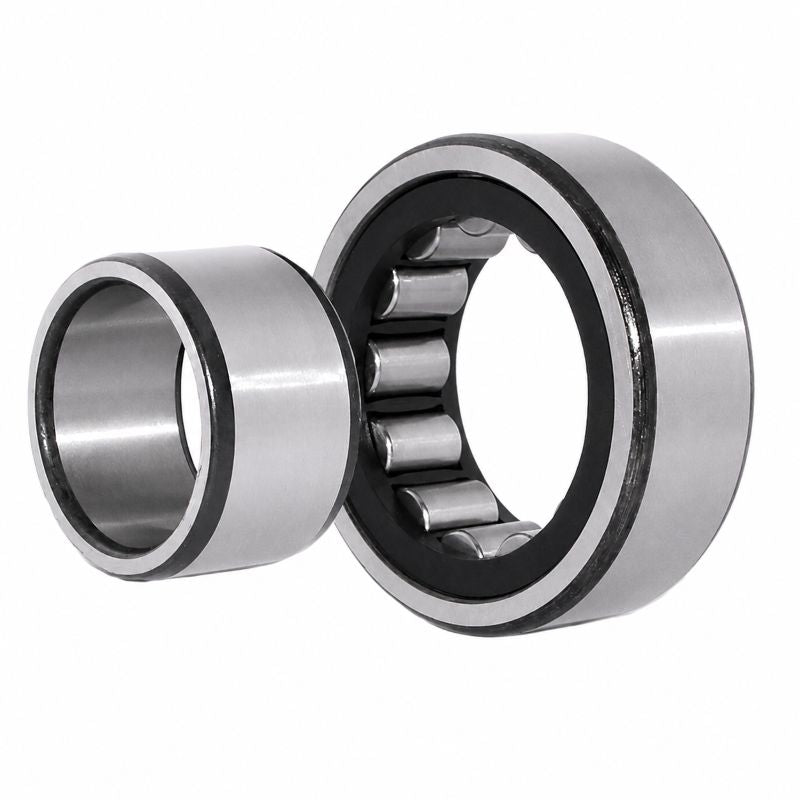

NU2330 Budget Single Row Cylindrical Roller Bearing 150x320x108mm
NU2330 Budget Single Row Cylindrical Roller Bearing 150x320x108mm
Regular price
£2,690.88
ex VAT£3,229.06inc. VAT
Regular price
Sale price
£2,690.88
ex VAT£3,229.06
inc. VAT
In stock
Price Break
10+
£2,394.88
19+
£2,260.34
29+
£2,233.43
39+
£2,206.52
49+
£2,179.61
74+
£2,152.70
99+
£2,018.16
199+
£1,991.25
249+
£1,964.34
499+
£1,937.43
999+
£1,883.61
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 320mm
- Width:
- 108mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 150mm |
|---|---|
| D | 320mm |
| B | 108mm |
| Dynamic load C | 1370 kN |
| Static load Co | 1630 kN |
| Fatigue load limit Pu | 166 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 3400 rpm |
| Weight | 45.5 kg |
| d1 | 209mm |
| D1 | 270mm |
| F, E | 193mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| s | 10.5mm |
| da min | 167mm |
| da max | 189mm |
| db min | 196mm |
| Da max | 303mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.25 |
