SKU: NTB.1831

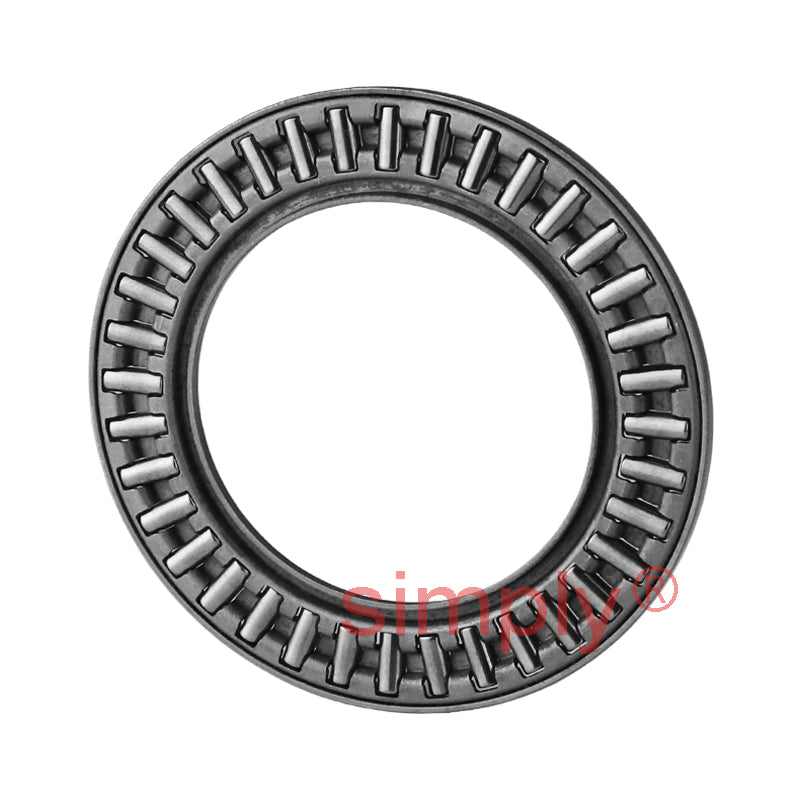

NTB1831 Needle Roller Thrust Bearing Cage Only 18x31x2mm
NTB1831 Needle Roller Thrust Bearing Cage Only 18x31x2mm
Regular price
£3.85
ex VAT£4.62inc. VAT
Regular price
Sale price
£3.85
ex VAT£4.62
inc. VAT
In stock
Price Break
10+
£3.43
19+
£3.23
29+
£3.20
39+
£3.16
49+
£3.12
74+
£3.08
99+
£2.89
199+
£2.85
249+
£2.81
499+
£2.77
999+
£2.70
Couldn't load pickup availability
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 31mm
- Width:
- 2mm
Technical
Technical
| D | 31mm |
|---|---|
| Dw | 2mm |
| d | 18mm |
| Dynamic Load Cor | 9550 N |
| Static Load Cr | 34400 N |
| Weight | 0.0047 kg |
