SKU: NTA4458-TRA4458

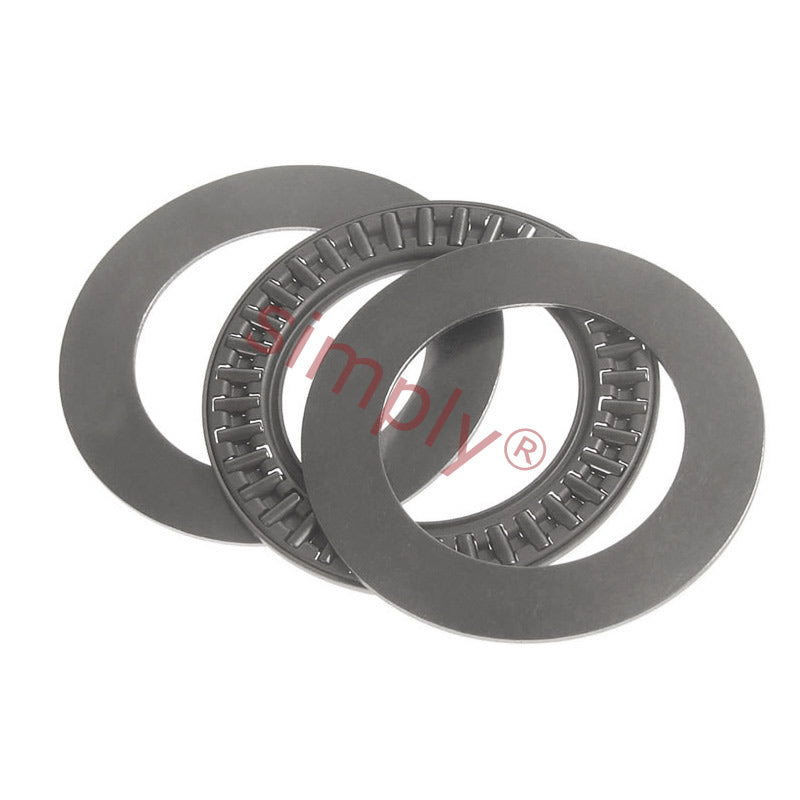

NTA4458 Needle Roller Cage Thrust Assembly with 2 TRA4458 Washers 2.75x3.625x0.1875 inch
NTA4458 Needle Roller Cage Thrust Assembly with 2 TRA4458 Washers 2.75x3.625x0.1875 inch
Regular price
£15.05
ex VAT£18.06inc. VAT
Regular price
Sale price
£15.05
ex VAT£18.06
inc. VAT
Equivalent to: NTC4458+TRA4458
In stock
Price Break
10+
£13.39
19+
£12.64
29+
£12.49
39+
£12.34
49+
£12.19
74+
£12.04
99+
£11.29
199+
£11.14
249+
£10.99
499+
£10.84
999+
£10.53
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC4458+TRA4458
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 92.08mm = 3.625 (3-5/8) inch
- Width:
- 4.76mm = 0.187 (3/16) inch
Technical
Technical
| d | 2.75 inch |
|---|---|
| D | 3.625 inch |
| Eb | 0.1275 inch |
| Dw | 2.86 inch |
| dw | 3.46 inch |
| Dynamic load | 47.60 kN |
| Static load | 255.80 kN |
| Limiting speed | 4600 rpm |
| Weight | 0.037228 kg |
| Washer | Dimensions |
| d | 2.750 inch |
| d1 | 3.625 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 2.747 inch |
| Pilot max | 2.750 inch |
| Dia to clear washer | 3.656 inch |
| Weight | 0.039 lbs |
