SKU: NTA411-TRA411

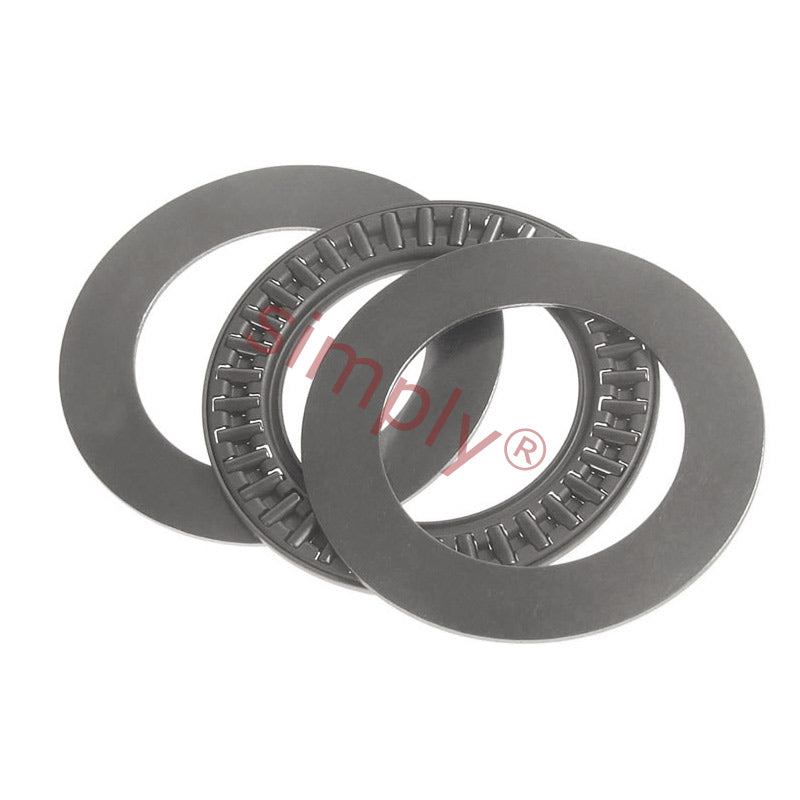

NTA411 Needle Roller Cage Thrust Assembly with 2 TRA411 Washers 0.25x0.687x0.1406 inch
NTA411 Needle Roller Cage Thrust Assembly with 2 TRA411 Washers 0.25x0.687x0.1406 inch
Regular price
£6.87
ex VAT£8.24inc. VAT
Regular price
Sale price
£6.87
ex VAT£8.24
inc. VAT
Equivalent to: NTC411+TRA411
In stock
Price Break
10+
£6.11
19+
£5.77
29+
£5.70
39+
£5.63
49+
£5.56
74+
£5.49
99+
£5.15
199+
£5.08
249+
£5.01
499+
£4.94
999+
£4.81
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC411+TRA411
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 0.25 inch |
|---|---|
| D | 0.687 inch |
| Eb | 0.0806 inch |
| Dw | 0.34 inch |
| dw | 0.58 inch |
| Dynamic load | 5.12 kN |
| Static load | 10.76 kN |
| Limiting speed | 26000 rpm |
| Weight | 0.001362 kg |
| Washer | Dimensions |
| d | 0.25 inch |
| d1 | 0.687 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 0.247 inch |
| Pilot max | 0.25 inch |
| Dia to clear washer | 0.719 inch |
| Weight | 0.003 lbs |
