SKU: NTA1625

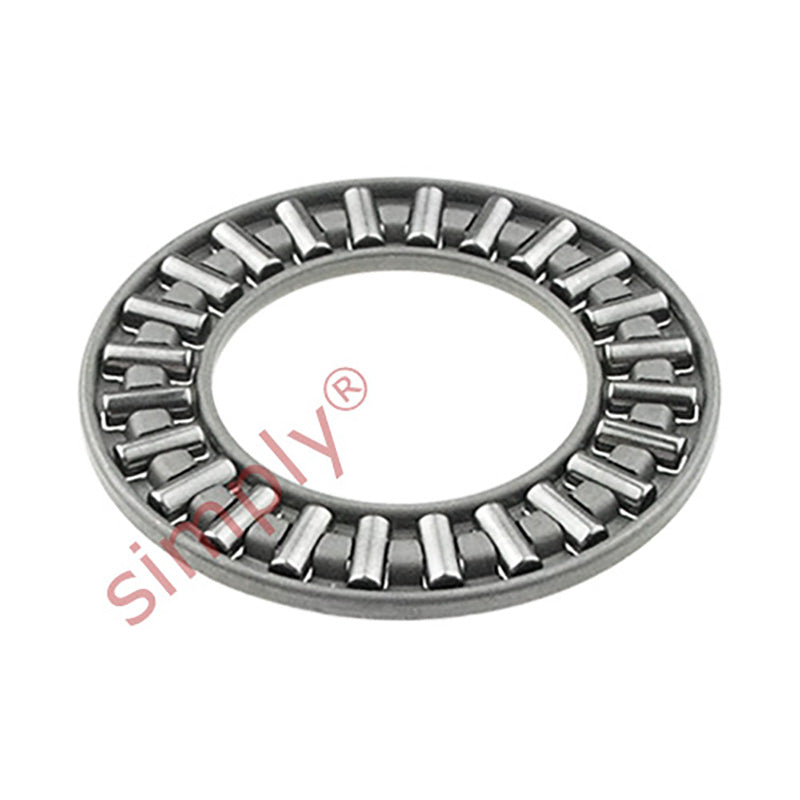

NTA1625 Needle Roller Cage Only 1.00x1.5625x0.0781 inch
NTA1625 Needle Roller Cage Only 1.00x1.5625x0.0781 inch
Regular price
£2.40
ex VAT£2.88inc. VAT
Regular price
Sale price
£2.40
ex VAT£2.88
inc. VAT
Equivalent to: NTC1625
In stock
Price Break
10+
£2.14
19+
£2.02
29+
£2.00
39+
£1.97
49+
£1.95
74+
£1.92
99+
£1.80
199+
£1.78
249+
£1.76
499+
£1.73
999+
£1.68
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC1625
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Width:
- 1.98mm = 0.078 (5/64) inch
Technical
Technical
| d | 1 inch |
|---|---|
| D | 1.5625 inch |
| Eb | 0.0781 inch |
| Dw | 1.45 inch |
| dw | 1.09 inch |
| Dynamic load | 13.83 kN |
| Static load | 53.82 kN |
| Limiting speed | 11000 rpm |
| Weight | 0.005902 kg |
