SKU: NP3L-RHP

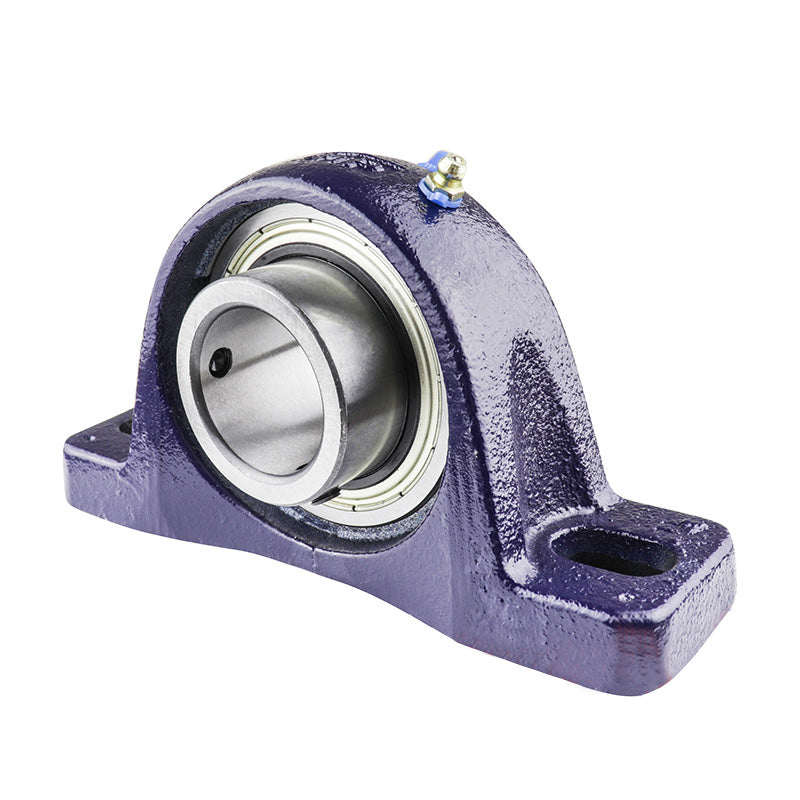

RHP NP3L Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Full Width Insert

RHP NP3L Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Full Width Insert
Regular price £243.43 ex VAT£292.12inc. VAT
Regular price Sale price £243.43 ex VAT£292.12 inc. VAT
Sale Sold out

In stock

Price Break
10+ £216.66
20+ £204.49
30+ £202.05
40+ £199.62
50+ £197.18
75+ £194.75
100+ £182.58
200+ £180.14
250+ £177.71
500+ £175.27
1000+ £170.40
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3 inch
L 11.457 inch
H 3.5 inch
H1 1.181 inch
H2 6.85 inch
J max 9.488 inch
J min 8.425 inch
G 0.875 inch
A 3.071 inch
A1 2.205 inch
B 3.25 inch
s 1.314 inch
d1 3.878 inch
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rec max speed 2150 rpm
Weight 9.7 kg
Insert <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
