SKU: NP2-RHP

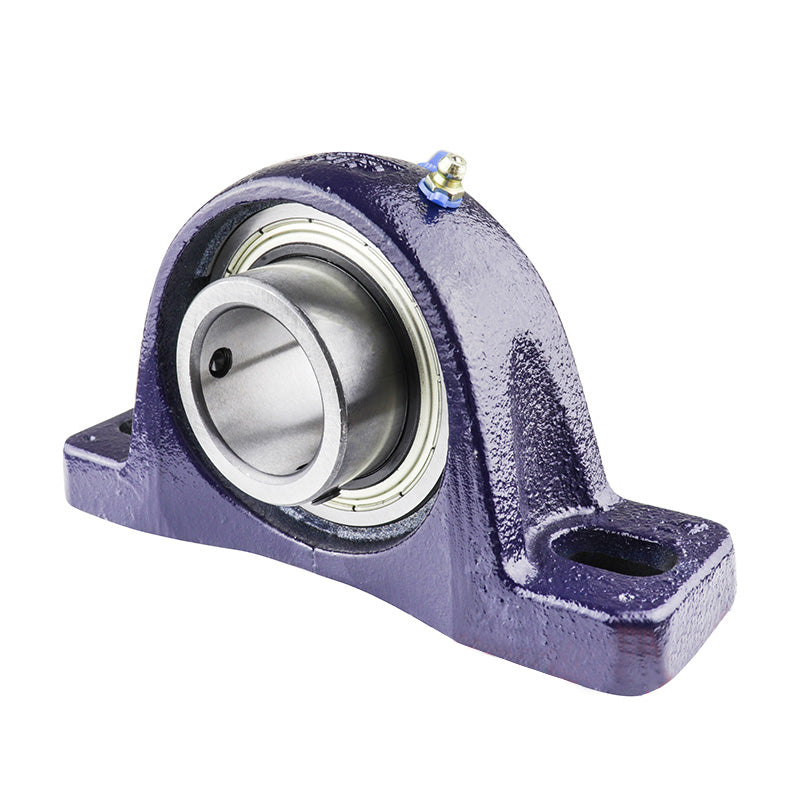

RHP NP2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
RHP NP2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
Regular price
£108.66
ex VAT£130.39inc. VAT
Regular price
Sale price
£108.66
ex VAT£130.39
inc. VAT
In stock
Price Break
10+
£96.70
20+
£91.27
30+
£90.18
40+
£89.10
50+
£88.01
75+
£86.92
100+
£81.49
200+
£80.41
250+
£79.32
500+
£78.23
1000+
£76.06
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- NP
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 8.641 inch |
| H | 2.5 inch |
| H1 | 0.976 inch |
| H2 | 5.098 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
