SKU: NP1A-RHP

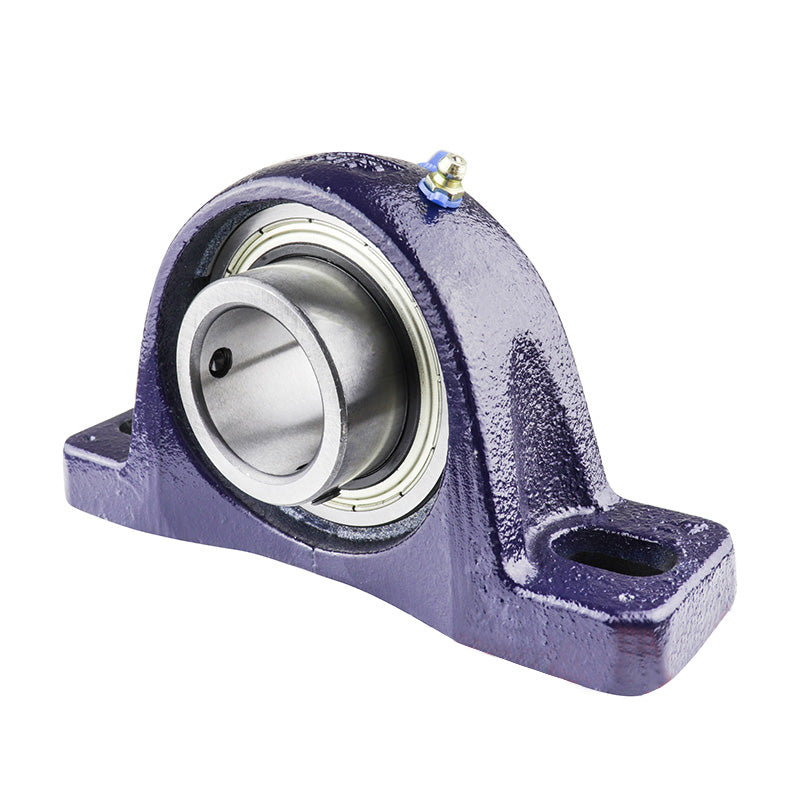

RHP NP1A Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Flat Back Insert
RHP NP1A Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Flat Back Insert
Regular price
£41.14
ex VAT£49.37inc. VAT
Regular price
Sale price
£41.14
ex VAT£49.37
inc. VAT
In stock
Price Break
10+
£36.62
20+
£34.56
30+
£34.15
40+
£33.74
50+
£33.33
75+
£32.92
100+
£30.86
200+
£30.45
250+
£30.04
500+
£29.62
1000+
£28.80
Share this product
Description
Description
|
RHP NP-A Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- NP
- Bolt Hole Centres:
- 3.811-4.437 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 5.472 inch |
| H | 1.437 inch |
| H1 | 0.63 inch |
| H2 | 2.795 inch |
| J max | 4.437 inch |
| J min | 3.811 inch |
| G | 0.375 inch |
| A | 1.437 inch |
| A1 | 0.965 inch |
| B1 | 1.077 inch |
| s1 | 0.298 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1AG+insonly">1225-1AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
