SKU: NNF5012ADB-2LSV-SKF

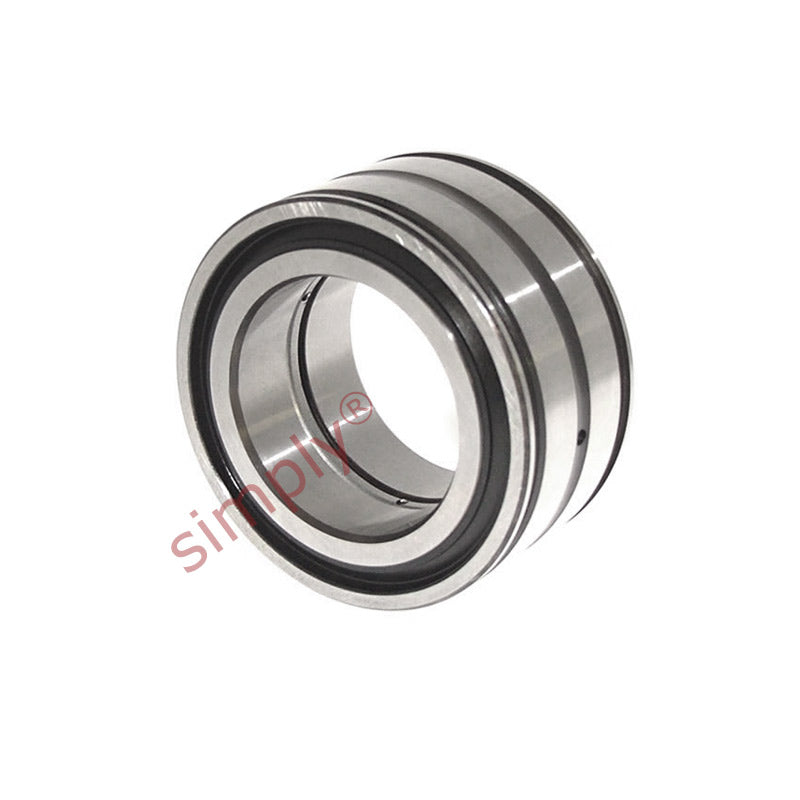

SKF NNF5012ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 60x95x46mm
SKF NNF5012ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 60x95x46mm
Regular price
£367.67
ex VAT£441.20inc. VAT
Regular price
Sale price
£367.67
ex VAT£441.20
inc. VAT
In stock
Price Break
10+
£327.23
19+
£308.84
29+
£305.17
39+
£301.49
49+
£297.81
74+
£294.14
99+
£275.75
199+
£272.07
249+
£268.40
499+
£264.72
999+
£257.37
Share this product
Description
Description
|
SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc. Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 46mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| B | 46mm |
| C | 45mm |
| Dynamic load C | 134 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 25 kN |
| Limiting speed | 1400 rpm |
| Weight | 1.2 kg |
| d1 | 73mm |
| D1 | 92.4mm |
| E | 85mm |
| C1+0.2 | 40.2mm |
| C2 | 2.4mm |
| b | 3.2mm |
| b1 | 4.5mm |
| K | 3.5mm |
| r min | 1mm |
| r3r4 min | 0.6mm |
| da min | 65mm |
| das | 71mm |
| Da max | 90mm |
| Ca1 - 0.2 | 35mm |
| Ca2 - 0.2 | 34mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
| Snap ring | SW95 |
| Din 471 | 95x3 |
