SKU: NKXR35-EU

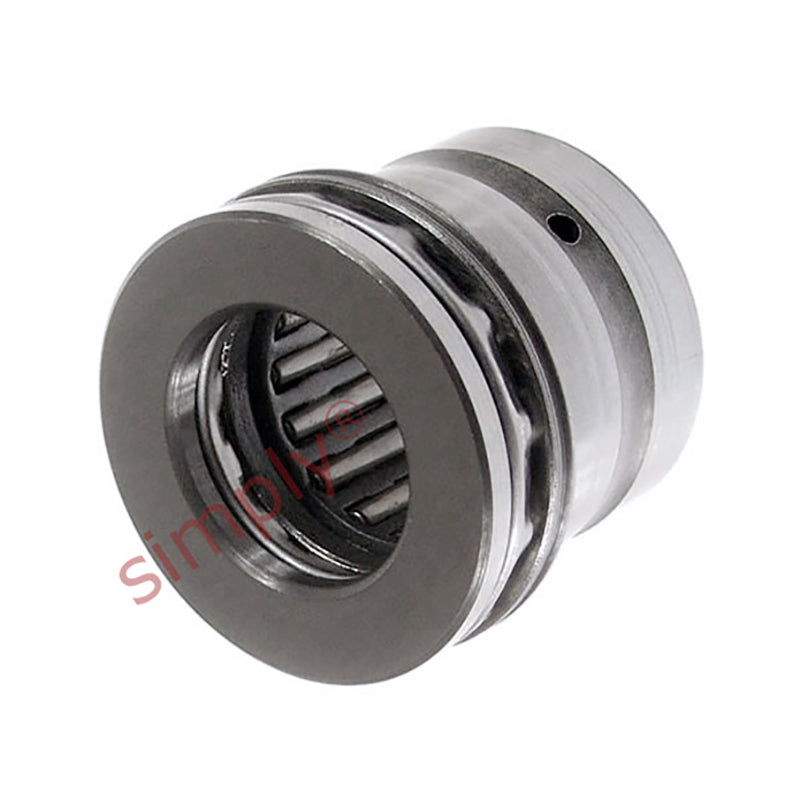

NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm
NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm
Regular price
£33.46
ex VAT£40.15inc. VAT
Regular price
Sale price
£33.46
ex VAT£40.15
inc. VAT
In stock
Price Break
10+
£29.78
19+
£28.11
29+
£27.77
39+
£27.44
49+
£27.10
74+
£26.77
99+
£25.10
199+
£24.76
249+
£24.43
499+
£24.09
999+
£23.42
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Axial dynamic load | 29000 N |
| Axial static load | 93000 N |
| Fatigue load limit radial Pu | 5600 N |
| Fatigue load limit axial Pu | 9150 N |
| Min load factor A | 0.69 |
| Speed in grease | 1900 rpm |
| Speed in oil | 2800 rpm |
| C1 | 12mm |
| C2 | 9mm |
| d | 35mm |
| D1 | 52mm |
| r1r2 min | 0.6mm |
| da | 47.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 30mm |
| F | 35mm |
| B1 | 20mm |
| Inner ring | IR30x35x20 |
| Weight | 160 g |
