SKU: NKXR17-EU

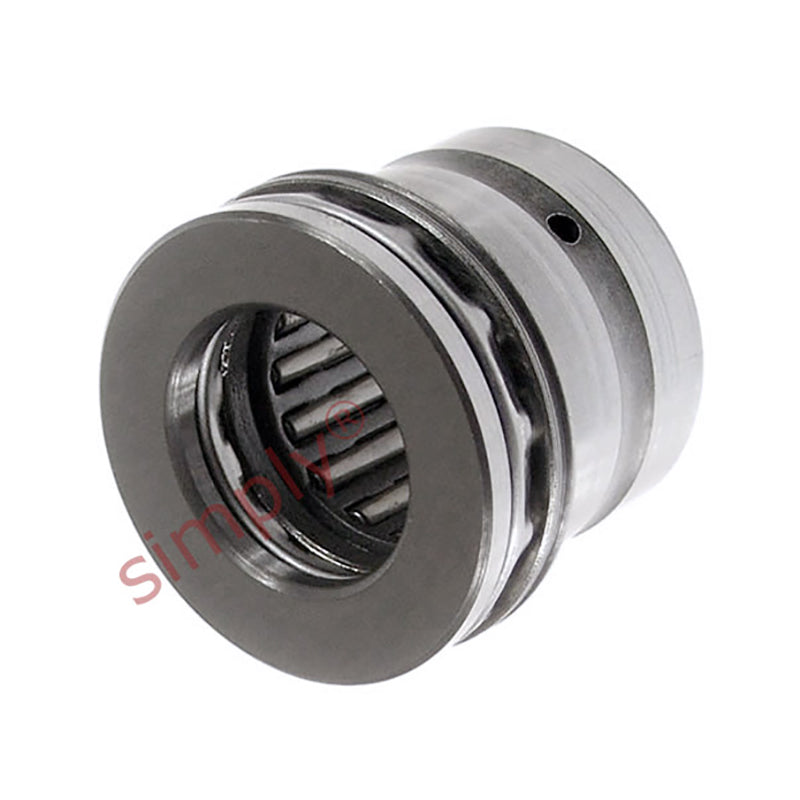

NKXR17 Budget Needle Roller Thrust Bearing without Cover 17x26x25mm
NKXR17 Budget Needle Roller Thrust Bearing without Cover 17x26x25mm
Regular price
£13.49
ex VAT£16.19inc. VAT
Regular price
Sale price
£13.49
ex VAT£16.19
inc. VAT
In stock
Price Break
10+
£12.01
19+
£11.33
29+
£11.20
39+
£11.06
49+
£10.93
74+
£10.79
99+
£10.12
199+
£9.98
249+
£9.85
499+
£9.71
999+
£9.44
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 25mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 26mm |
| C | 25mm |
| Dynamic load | 12300 N |
| Static load | 16600 N |
| Axial dynamic load | 12200 N |
| Axial static load | 31500 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 2850 N |
| Min load factor A | 0.079 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 8mm |
| d | 17mm |
| D1 | 30mm |
| r1r2 min | 0.3mm |
| da | 25.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 14mm |
| F | 17mm |
| B1 | 17mm |
| Inner ring | IR14x17x17 |
| Weight | 50 g |
