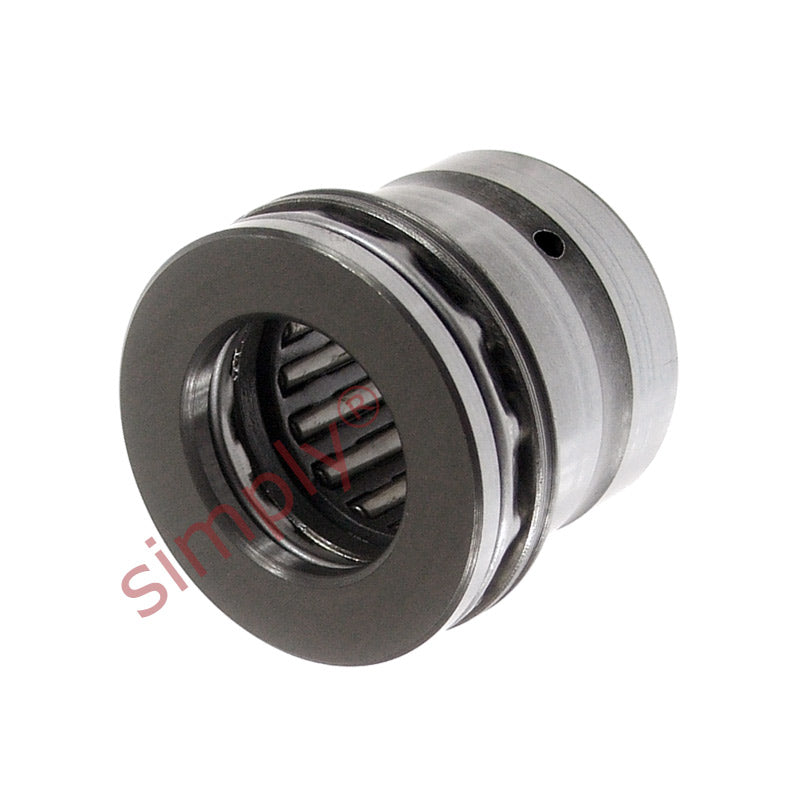

• NKX70 Budget Needle Roller Thrust Ball Bearing Without Cover 70x85x40mm
1 1

SKU: NKX70-EU

NKX70 Budget Needle Roller Thrust Ball Bearing Without Cover 70x85x40mm

NKX70 Budget Needle Roller Thrust Ball Bearing Without Cover 70x85x40mm
£52.63 ex VAT£63.16inc. VAT
£52.63 ex VAT£63.16 inc. VAT
Sale Sold out

In stock

Price Break
10+ £46.84
19+ £44.21
29+ £43.68
39+ £43.16
49+ £42.63
74+ £42.10
99+ £39.47
199+ £38.95
249+ £38.42
499+ £37.89
999+ £36.84
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation.
Benefits: High speed / thrust loading, separable design- easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
70mm
Outside Diameter:
85mm
Width:
40mm
Technical
Fw 70mm
D 85mm
C 40mm
Radial dynamic load 44600 N
Radial static load 98000 N
Axial dynamic load 43600 N
Axial static load 137000 N
Fatigue load limit radial Pu 12200 N
Fatigue load limit axial Pu 5100 N
Min load factor 97
Speed in grease 2400 rpm
Speed in oil 3400 rpm
C1 18mm
C2 11mm
d 70mm
d1 95mm
D1 95mm
r1r2 min 1mm
da min 85mm
ra max 1mm
rb max 1mm
di 60mm
F 70mm
Bi 25mm
Inner ring IR60x70x25
Weight 500 g
