SKU: NKS50-NTN

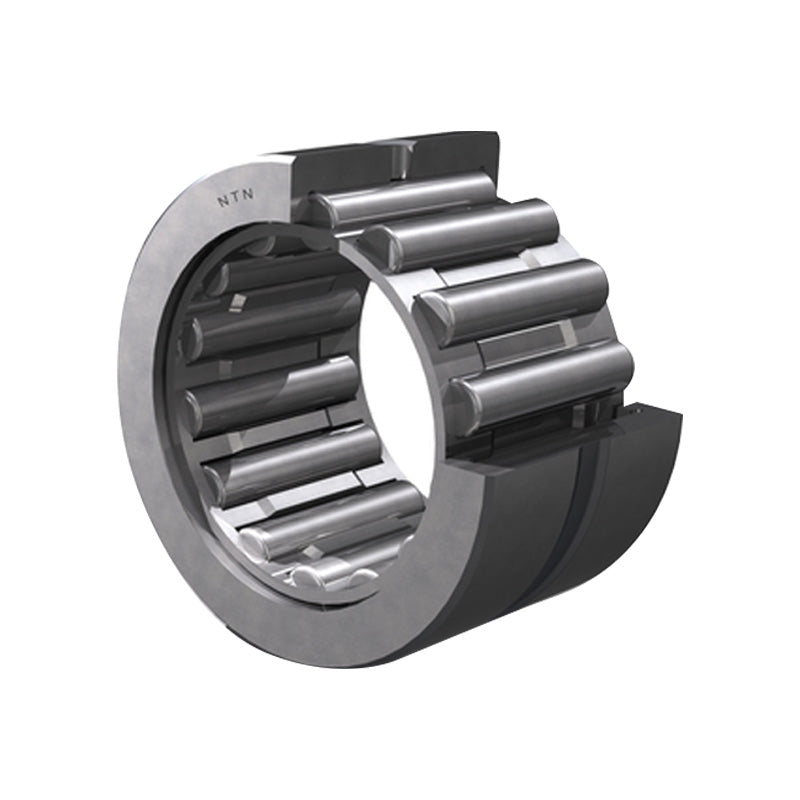

NTN NKS50 Machined Needle Roller Bearing no Shaft Sleeve 50x65x22mm - Allow 2-3 Days

NTN NKS50 Machined Needle Roller Bearing no Shaft Sleeve 50x65x22mm - Allow 2-3 Days
Regular price £31.01 ex VAT£37.21inc. VAT
Regular price Sale price £31.01 ex VAT£37.21 inc. VAT
Sale Sold out

In stock

Price Break
3+ £30.70
4+ £29.46
9+ £28.84
19+ £27.91
49+ £27.29
99+ £25.74
499+ £21.71
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 50mm
D - Outside diameter 65mm
C - Width of bearing, drawn cup or outer ring 22mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 31.5 kN
C0r - Static load rating 57 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 53.5mm
ras max - Maximum shaft & housing fillet radius 1mm
