SKU: NKIS65-EU

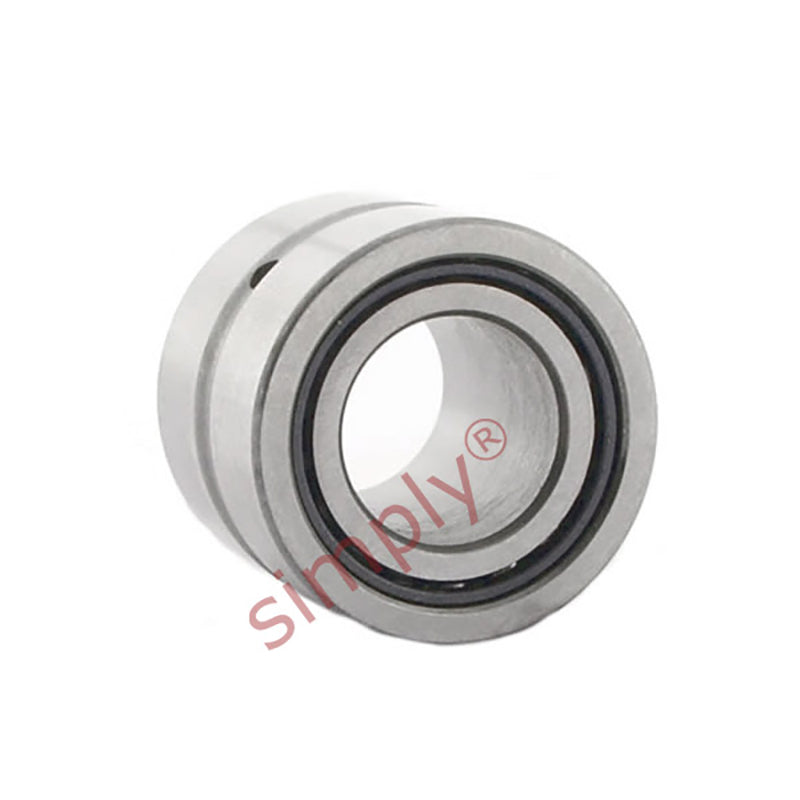

NKIS65 Budget Needle Roller Bearing / Shaft Sleeve 65x95x28mm
NKIS65 Budget Needle Roller Bearing / Shaft Sleeve 65x95x28mm
Regular price
£81.00
ex VAT£97.20inc. VAT
Regular price
Sale price
£81.00
ex VAT£97.20
inc. VAT
In stock
Price Break
10+
£72.09
19+
£68.04
29+
£67.23
39+
£66.42
49+
£65.61
74+
£64.80
99+
£60.75
199+
£59.94
249+
£59.13
499+
£58.32
999+
£56.70
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 95mm
- Width:
- 28mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 95mm |
| B | 28mm |
| Dynamic load C | 70400 N |
| Static load Co | 132000 N |
| Fatigue load limit Pu | 17000 N |
| Speed in grease | 3800 rpm |
| Speed in oil | 5300 rpm |
| F | 75mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 71.5mm |
| Da max | 88.5mm |
| ra max | 1mm |
