SKU: NKIS45-MB

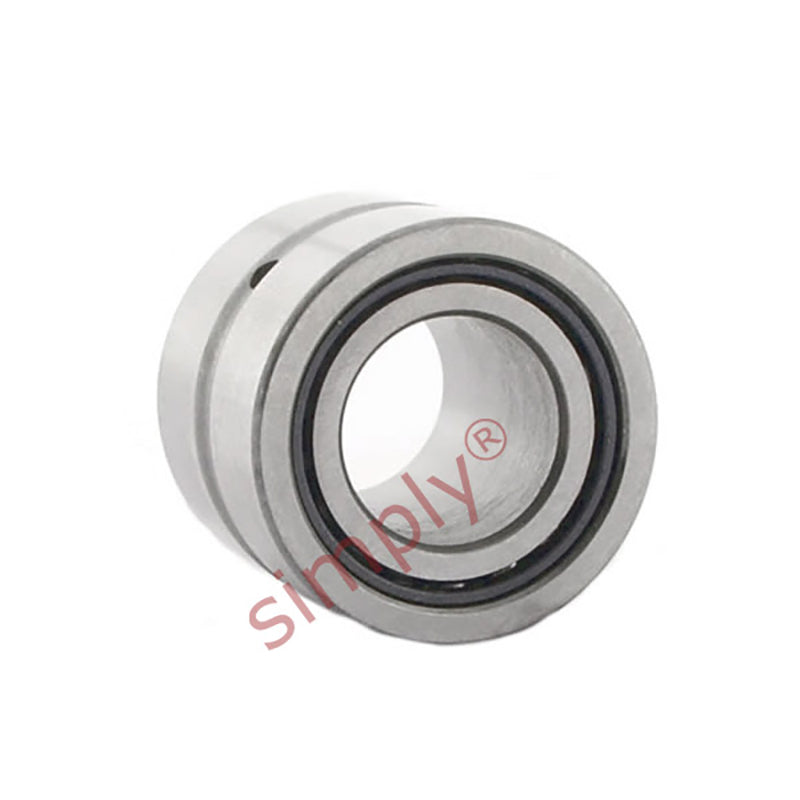

Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm
Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm
Regular price
£58.99
ex VAT£70.79inc. VAT
Regular price
Sale price
£58.99
ex VAT£70.79
inc. VAT
In stock
Price Break
10+
£52.50
19+
£49.55
29+
£48.96
39+
£48.37
49+
£47.78
74+
£47.19
99+
£44.24
199+
£43.65
249+
£43.06
499+
£42.47
999+
£41.29
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 72mm
- Width:
- 22mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 72mm |
| B | 22mm |
| Dynamic load | 44600 N |
| Static load | 78000 N |
| Fatigue load limit Pu | 10000 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| F | 55mm |
| r1r2 | 1mm |
| S (axial disp) | 0.5mm |
| da min | 50mm |
| Da max | 67mm |
| ra max | 1mm |
