SKU: NKIS35-EU

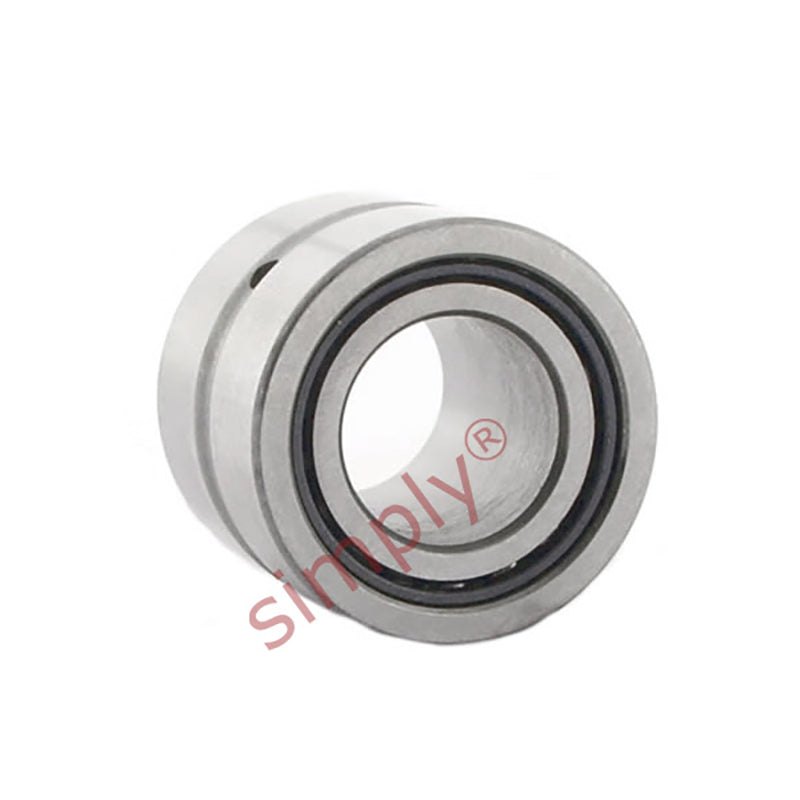

NKIS35 Budget Needle Roller Bearing / Shaft Sleeve 35x58x22mm
NKIS35 Budget Needle Roller Bearing / Shaft Sleeve 35x58x22mm
Regular price
£9.76
ex VAT£11.71inc. VAT
Regular price
Sale price
£9.76
ex VAT£11.71
inc. VAT
In stock
Price Break
10+
£8.69
19+
£8.20
29+
£8.10
39+
£8.00
49+
£7.91
74+
£7.81
99+
£7.32
199+
£7.22
249+
£7.12
499+
£7.03
999+
£6.83
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 58mm
- Width:
- 22mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 58mm |
| B | 22mm |
| Dynamic load C | 39100 N |
| Static load Co | 61000 N |
| Fatigue load limit Pu | 7800 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| F | 43mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.5mm |
| da min | 39mm |
| Da max | 54mm |
| ra max | 0.6mm |
