SKU: NKIB5905-MB

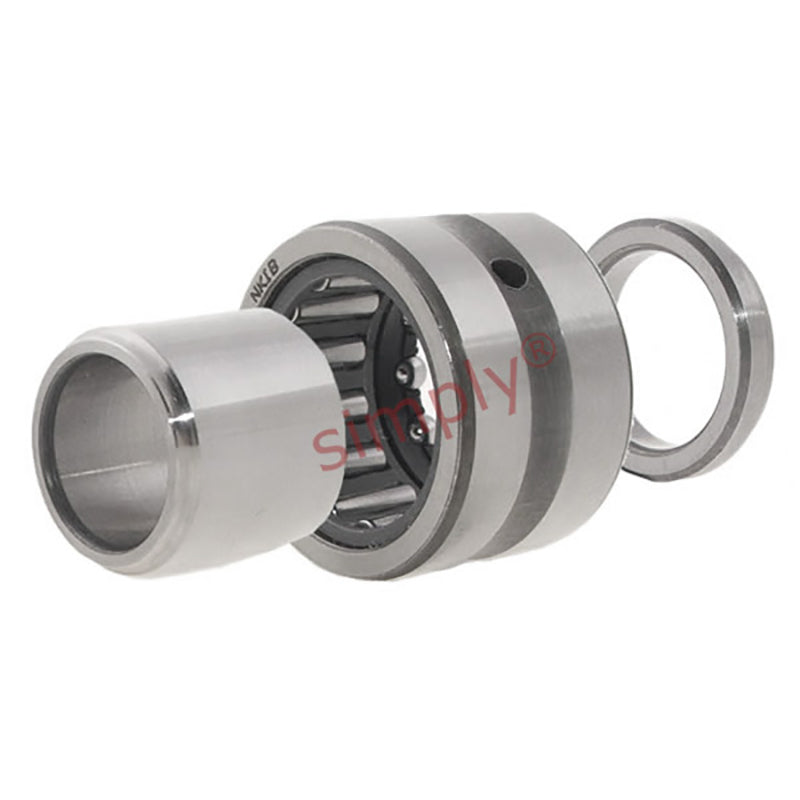

Major Brand NKIB5905 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5905 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
£50.66
ex VAT£60.79inc. VAT
Regular price
Sale price
£50.66
ex VAT£60.79
inc. VAT
In stock
Price Break
10+
£45.09
19+
£42.55
29+
£42.05
39+
£41.54
49+
£41.03
74+
£40.53
99+
£37.99
199+
£37.49
249+
£36.98
499+
£36.47
999+
£35.46
Share this product
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 25mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 24200 N |
| Radial static load | 34500 N |
| Axial dynamic load | 4240 N |
| Axial static load | 5260 N |
| Fatigue load limit radial Pu | 4150 N |
| Fatigue load limit axial Pu | 224 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| r1r2 | 0.3mm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
