SKU: NKIB59/22-EU

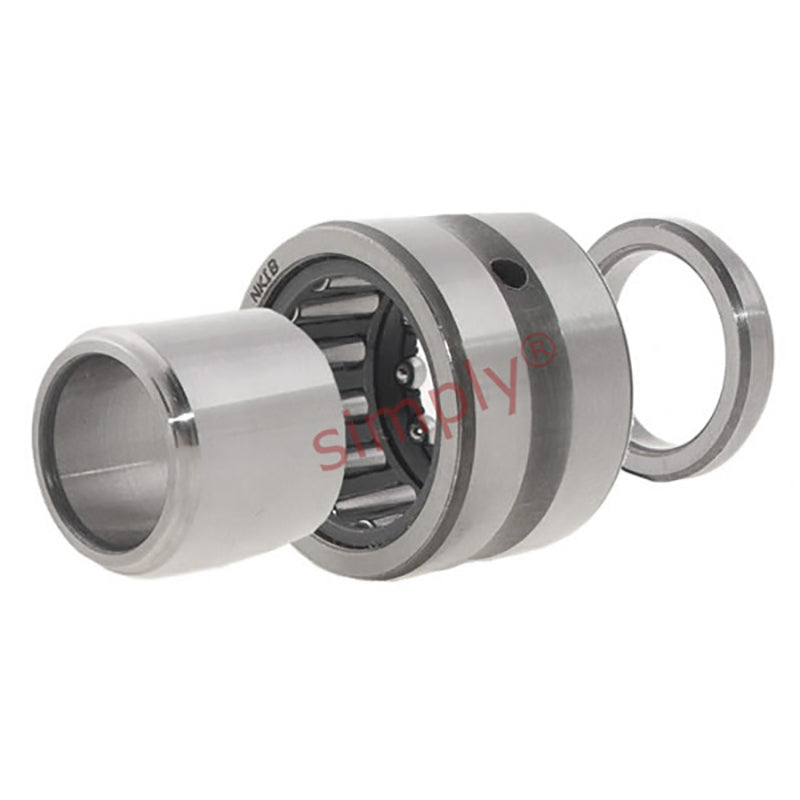

NKIB59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x25mm
NKIB59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x25mm
Regular price
£37.88
ex VAT£45.46inc. VAT
Regular price
Sale price
£37.88
ex VAT£45.46
inc. VAT
In stock
Price Break
10+
£33.71
19+
£31.82
29+
£31.44
39+
£31.06
49+
£30.68
74+
£30.31
99+
£28.41
199+
£28.03
249+
£27.65
499+
£27.27
999+
£26.52
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 39mm
- Width:
- 25mm
Technical
Technical
| d | 22mm |
|---|---|
| D | 39mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 23300 N |
| Radial static load | 32000 N |
| Axial dynamic load | 4140 N |
| Axial static load | 4930 N |
| Fatigue load limit radial Pu | 3900 N |
| Fatigue load limit axial Pu | 205 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| F | 28mm |
| r1r2 | 0.3mm |
| da min | 24mm |
| Da max | 37mm |
| ra max | 0.3mm |
| Weight | 120 g |
