SKU: NKIA5909-EU

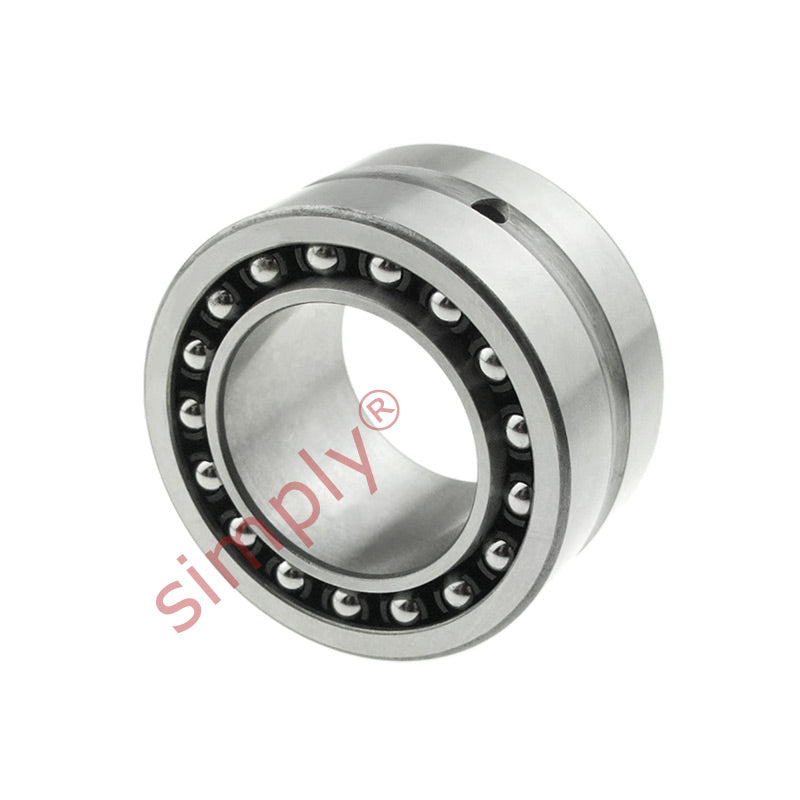

NKIA5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x30mm
NKIA5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x30mm
Regular price
£67.33
ex VAT£80.80inc. VAT
Regular price
Sale price
£67.33
ex VAT£80.80
inc. VAT
In stock
Price Break
10+
£59.92
19+
£56.55
29+
£55.88
39+
£55.21
49+
£54.53
74+
£53.86
99+
£50.49
199+
£49.82
249+
£49.15
499+
£48.47
999+
£47.13
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 30mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 68mm |
| B | 30mm |
| Radial dynamic load | 45700 N |
| Radial static load | 78000 N |
| Axial dynamic load | 7470 N |
| Axial static load | 12000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 513 N |
| Speed in grease | 5300 rpm |
| Speed in oil | 7500 rpm |
| F | 52mm |
| r1r2 | 0.6mm |
| da min | 49mm |
| Da max | 64mm |
| ra max | 0.6mm |
| Weight | 380 g |
