SKU: NKIA5907-MB

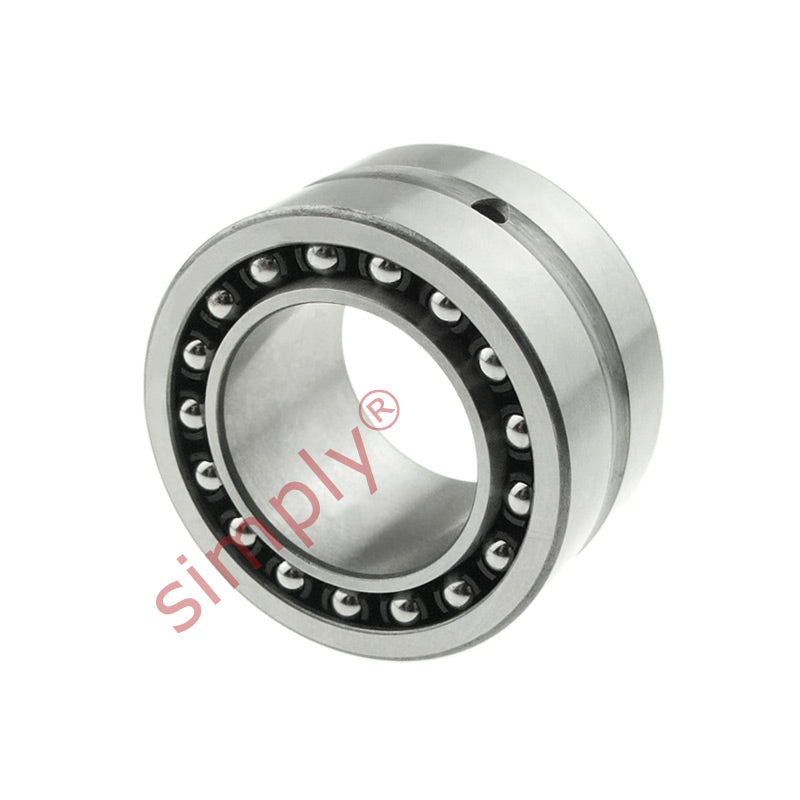

Major Brand NKIA5907 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5907 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
£36.74
ex VAT£44.09inc. VAT
Regular price
Sale price
£36.74
ex VAT£44.09
inc. VAT
In stock
Price Break
10+
£32.70
19+
£30.86
29+
£30.49
39+
£30.13
49+
£29.76
74+
£29.39
99+
£27.56
199+
£27.19
249+
£26.82
499+
£26.45
999+
£25.72
Couldn't load pickup availability
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 27mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 27mm |
| Radial dynamic load | 31900 N |
| Radial static load | 54000 N |
| Axial dynamic load | 5830 N |
| Axial static load | 8420 N |
| Fatigue load limit radial Pu | 6700 N |
| Fatigue load limit axial Pu | 355 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 42mm |
| r1r2 | 0.6mm |
| da min | 39mm |
| Da max | 51mm |
| ra max | 0.6mm |
