SKU: NKIA5902-MB

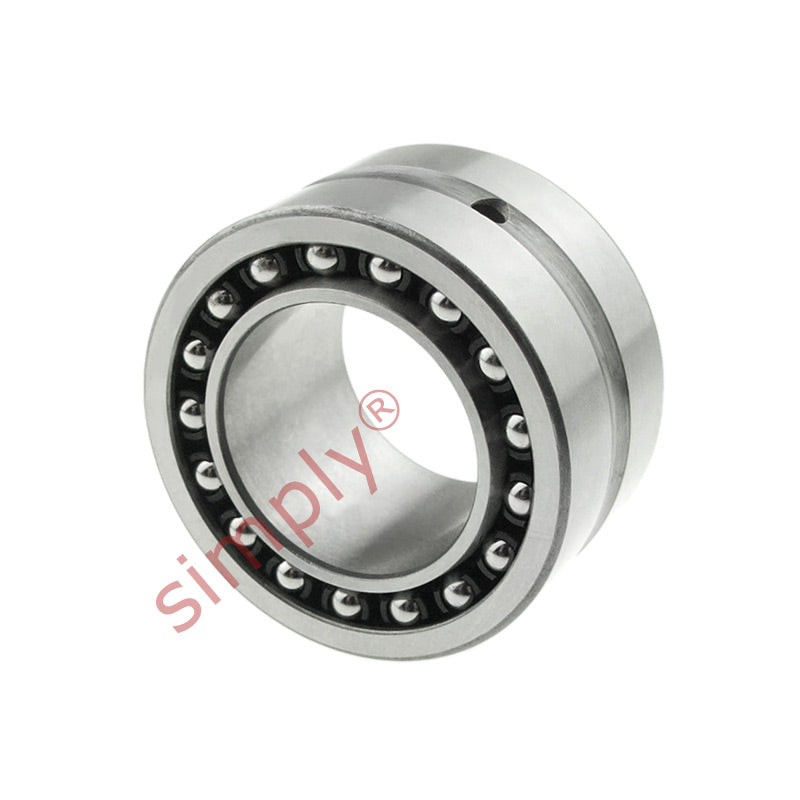

Major Brand NKIA5902 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5902 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
£28.49
ex VAT£34.19inc. VAT
Regular price
Sale price
£28.49
ex VAT£34.19
inc. VAT
In stock
Price Break
10+
£25.36
19+
£23.93
29+
£23.65
39+
£23.36
49+
£23.08
74+
£22.79
99+
£21.37
199+
£21.08
249+
£20.80
499+
£20.51
999+
£19.94
Share this product
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 18mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 18mm |
| Radial dynamic load | 11400 N |
| Radial static load | 15600 N |
| Axial dynamic load | 2270 N |
| Axial static load | 2370 N |
| Fatigue load limit radial Pu | 1830 N |
| Fatigue load limit axial Pu | 99 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
