SKU: NKI85/36-EU

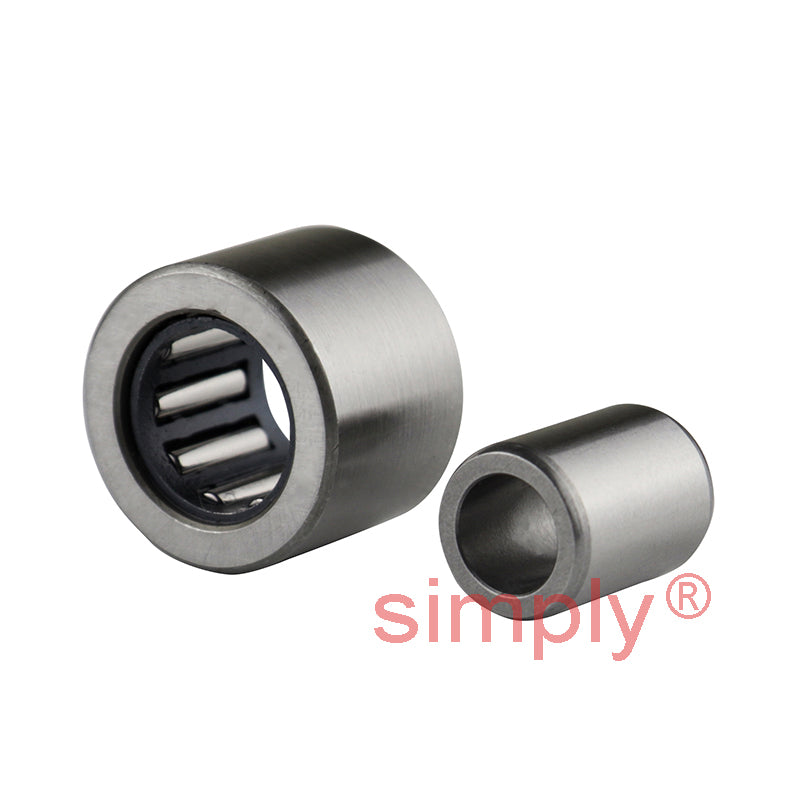

NKI85/36 Budget Needle Roller Bearing / Shaft Sleeve 85x115x36mm
NKI85/36 Budget Needle Roller Bearing / Shaft Sleeve 85x115x36mm
Regular price
£126.27
ex VAT£151.52inc. VAT
Regular price
Sale price
£126.27
ex VAT£151.52
inc. VAT
In stock
Price Break
10+
£112.38
19+
£106.07
29+
£104.80
39+
£103.54
49+
£102.28
74+
£101.02
99+
£94.70
199+
£93.44
249+
£92.18
499+
£90.91
999+
£88.39
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 115mm
- Width:
- 36mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 115mm |
| B | 36mm |
| Dynamic load C | 105000 N |
| Static load Co | 232000 N |
| Fatigue load limit Pu | 30500 N |
| Speed in grease | 3000 rpm |
| Speed in oil | 4300 rpm |
| F | 95mm |
| r1r2 | 1mm |
| S (axial disp) | 1.5mm |
| da min | 90mm |
| Da max | 110mm |
| ra max | 1mm |
