SKU: NKI75/35-EU

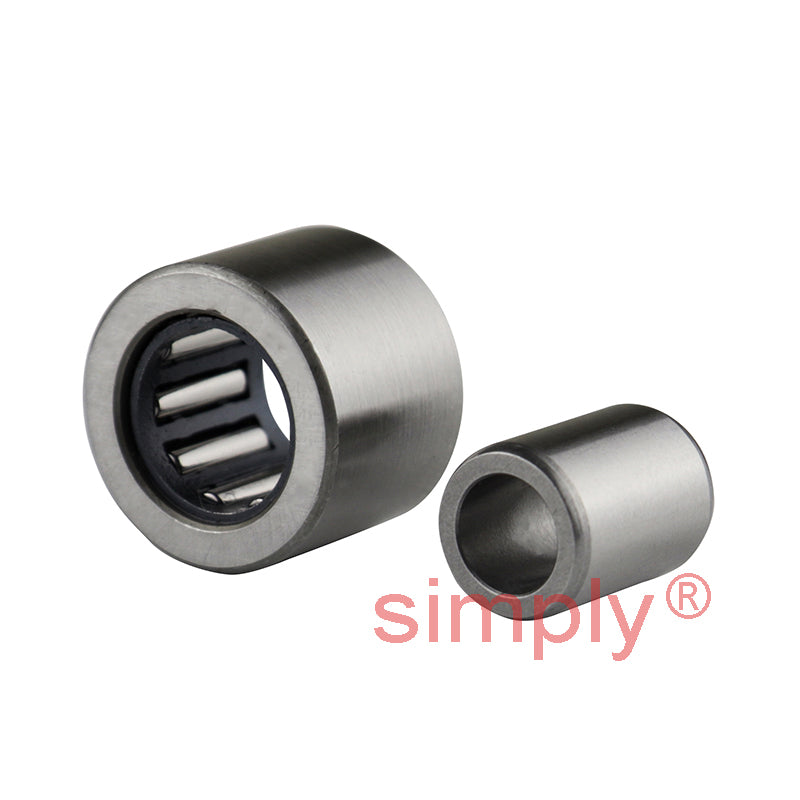

NKI75/35 Budget Needle Roller Bearing / Shaft Sleeve 75x105x35mm
NKI75/35 Budget Needle Roller Bearing / Shaft Sleeve 75x105x35mm
Regular price
£96.19
ex VAT£115.43inc. VAT
Regular price
Sale price
£96.19
ex VAT£115.43
inc. VAT
In stock
Price Break
10+
£85.61
19+
£80.80
29+
£79.84
39+
£78.88
49+
£77.92
74+
£76.95
99+
£72.14
199+
£71.18
249+
£70.22
499+
£69.26
999+
£67.34
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 35mm
Technical
Technical
| d | 75mm |
|---|---|
| D | 105mm |
| B | 35mm |
| Dynamic load C | 96800 N |
| Static load Co | 200000 N |
| Fatigue load limit Pu | 27000 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4800 rpm |
| F | 85mm |
| r1r2 | 1mm |
| S (axial disp) | 1mm |
| da min | 80mm |
| Da max | 100mm |
| ra max | 1mm |
