SKU: NKI75/25-EU

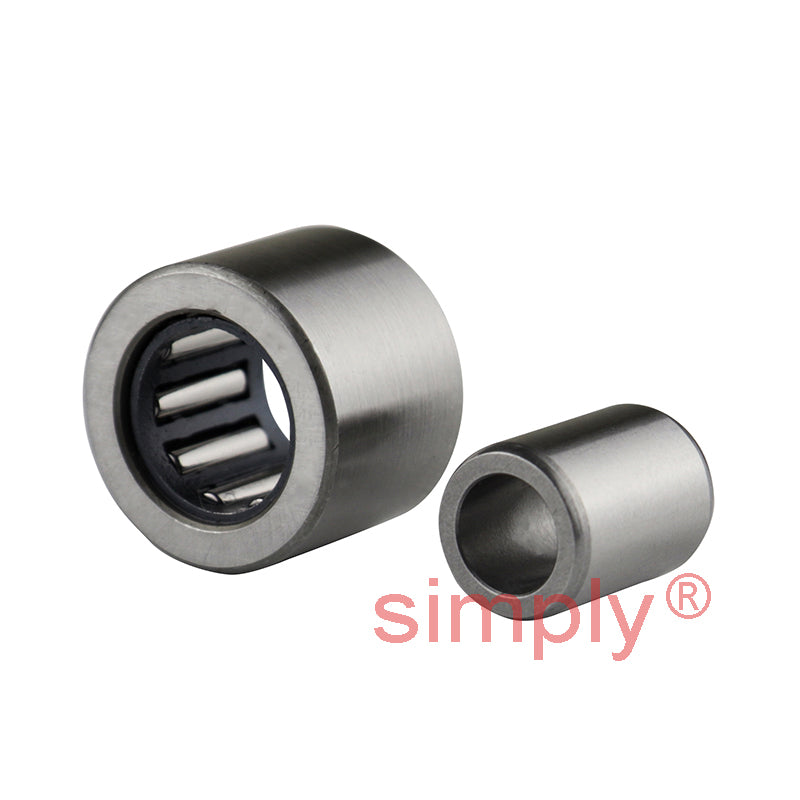

NKI75/25 Budget Needle Roller Bearing / Shaft Sleeve 75x105x25mm
NKI75/25 Budget Needle Roller Bearing / Shaft Sleeve 75x105x25mm
Regular price
£82.19
ex VAT£98.63inc. VAT
Regular price
Sale price
£82.19
ex VAT£98.63
inc. VAT
In stock
Price Break
10+
£73.15
19+
£69.04
29+
£68.22
39+
£67.40
49+
£66.58
74+
£65.75
99+
£61.64
199+
£60.82
249+
£60.00
499+
£59.18
999+
£57.54
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 25mm
Technical
Technical
| d | 75mm |
|---|---|
| D | 105mm |
| B | 25mm |
| Dynamic load C | 69300 N |
| Static load Co | 132000 N |
| Fatigue load limit Pu | 17000 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4800 rpm |
| F | 85mm |
| r1r2 | 1mm |
| S (axial disp) | 1mm |
| da min | 80mm |
| Da max | 100mm |
| ra max | 1mm |
