SKU: NKI50/35-EU

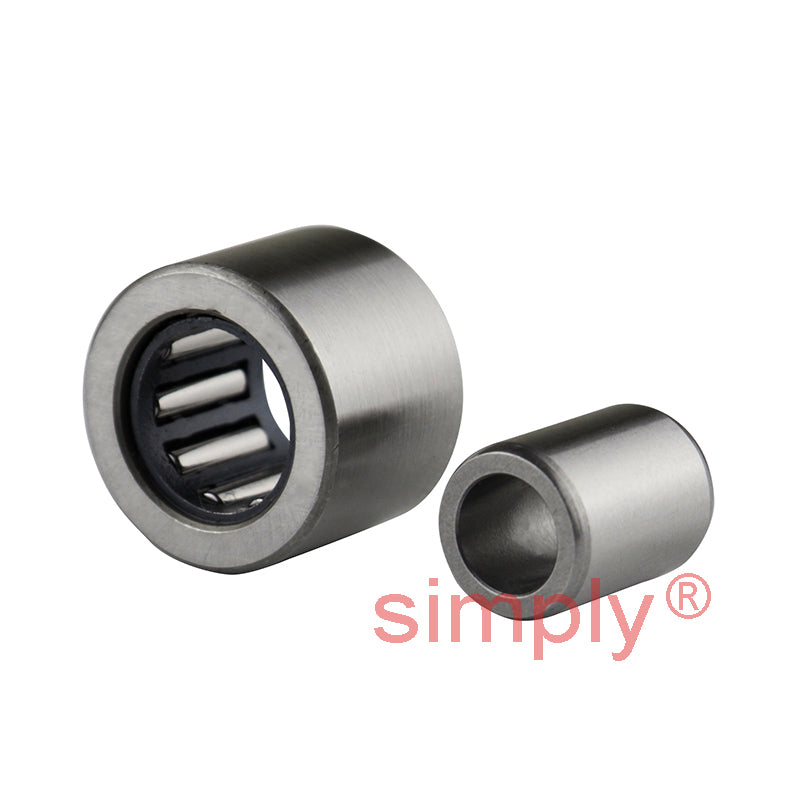

NKI50/35 Budget Needle Roller Bearing / Shaft Sleeve 50x68x35mm
NKI50/35 Budget Needle Roller Bearing / Shaft Sleeve 50x68x35mm
Regular price
£12.73
ex VAT£15.28inc. VAT
Regular price
Sale price
£12.73
ex VAT£15.28
inc. VAT
In stock
Price Break
10+
£11.33
19+
£10.69
29+
£10.57
39+
£10.44
49+
£10.31
74+
£10.18
99+
£9.55
199+
£9.42
249+
£9.29
499+
£9.17
999+
£8.91
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 68mm
- Width:
- 35mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 68mm |
| B | 35mm |
| Dynamic load C | 52300 N |
| Static load Co | 122000 N |
| Fatigue load limit Pu | 16000 N |
| Speed in grease | 5300 rpm |
| Speed in oil | 7500 rpm |
| F | 55mm |
| r1r2 | 0.6mm |
| S (axial disp) | 2mm |
| da min | 54mm |
| Da max | 64mm |
| ra max | 0.6mm |
