SKU: NKI5/12TN-EU

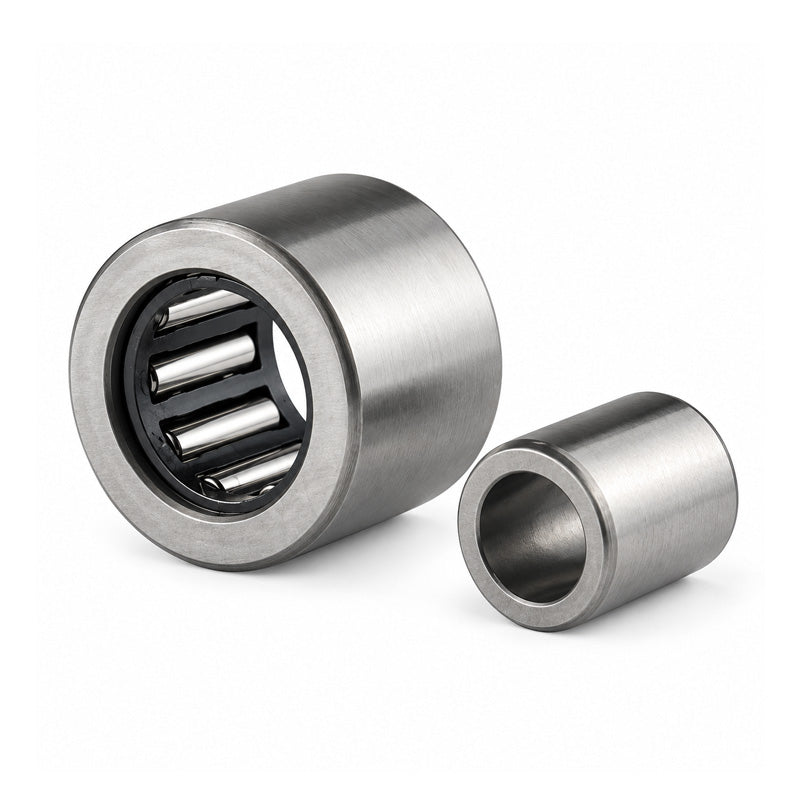

NKI5/12TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x12mm
NKI5/12TN Budget Needle Roller Bearing / Shaft Sleeve 5x15x12mm
Regular price
£9.38
ex VAT£11.26inc. VAT
Regular price
Sale price
£9.38
ex VAT£11.26
inc. VAT
In stock
Price Break
10+
£8.35
19+
£7.88
29+
£7.79
39+
£7.69
49+
£7.60
74+
£7.50
99+
£7.04
199+
£6.94
249+
£6.85
499+
£6.75
999+
£6.57
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 15mm
- Width:
- 12mm
Technical
Technical
| d | 5mm |
|---|---|
| D | 15mm |
| B | 12mm |
| Dynamic load C | 3800 N |
| Static load Co | 4250 N |
| Fatigue load limit Pu | 465 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| F | 8mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1.5mm |
| da min | 7mm |
| Da max | 13mm |
| ra max | 0.3mm |
